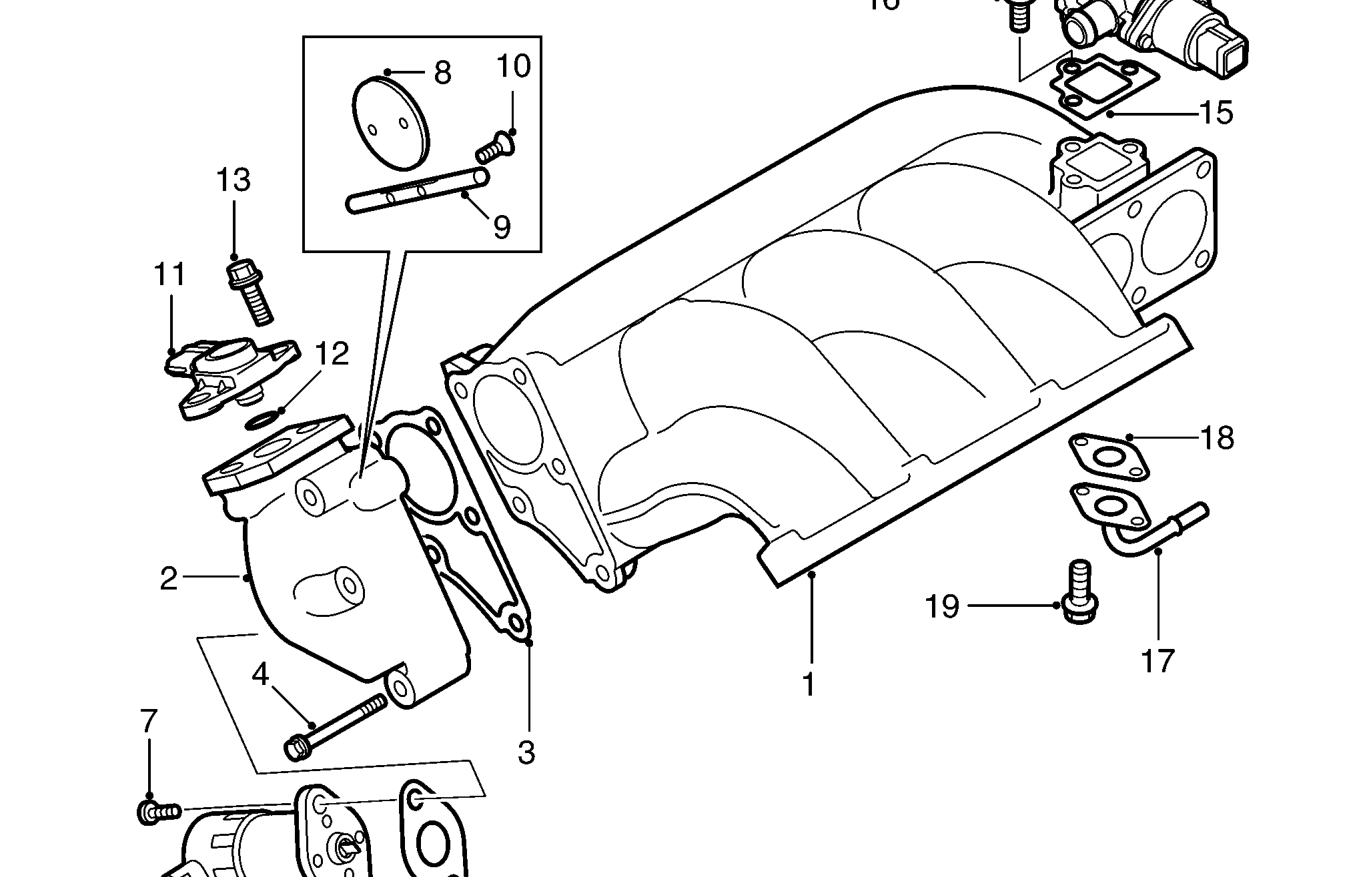

INLET MANIFOLD CHAMBER COMPONENTS - KV6

1. Inlet manifold chamber
2. Balance valve housing
3. Gasket - housing
4. Flanged bolt - M6 x 50 - 5 off
5. Motor - VIS control
6. Gasket - motor
7. Flanged screw - M6 x 12 - 2 off
8. Butterfly valve
9. Valve spindle
10. Locking screw - 2 off
11. MAP sensor
12. ’O’ ring - MAP sensor
13. Flanged screw - M6 x 12
14. Idle air control valve
15. Gasket - idle air control valve
16. Flanged screw - M6 x 12
17. Purge plate adaptor
18. Gasket - purge plate
19. Flange screw - M6 x 12
