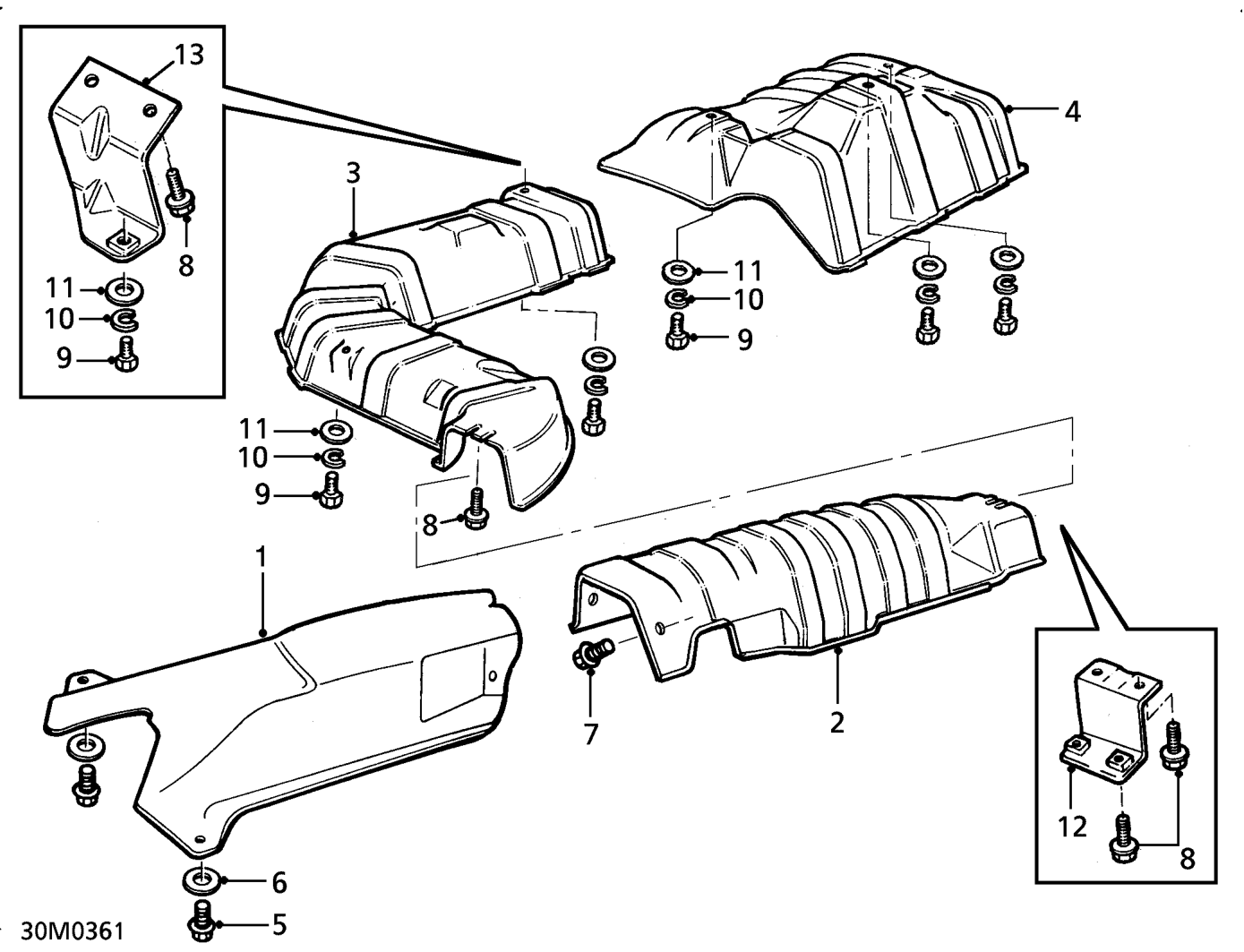

HEAT SHIELDS - KV6

1. Heat shield - catalytic converter
2. Heat shield - body
3. Heat shield - fuel tank
4. Heat shield - tail pipe
5. Screw - M6 x 10 and flat washer
6. Flat washer - 6 x 25 mm
7. Flanged screw - M6 x 10
8. Screw washer - M6 x 10
9. Screw - M6 x 10
10. Spring washer - 6 mm
11. Flat washer - 6 mm
12. Mounting bracket - heat shield
13. Mounting bracket - heat shield
