Rover 800 Workshop Manual (1996-1999)15 · Manual gearbox - PG1
15 · Transmission

Gearbox assembly (page 2 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manual gearbox - PG1Gearbox assembly · page 2 of 9
Diagram

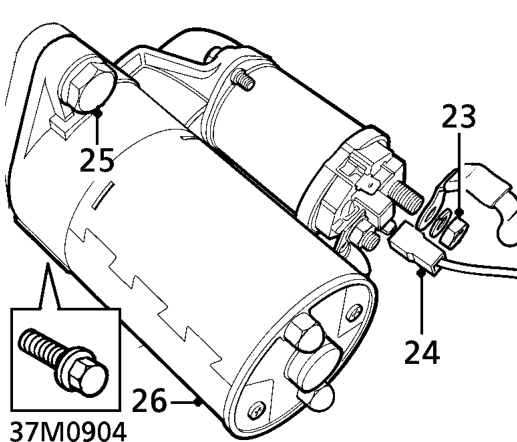

  1. Release cover from starter solenoid battery lead.
  2. Remove terminal nut and disconnect lead.
  3. Disconnect solenoid lucar.
  4. Remove 2 bolts securing starter motor.
  5. Remove starter motor.
Remove starter motor.

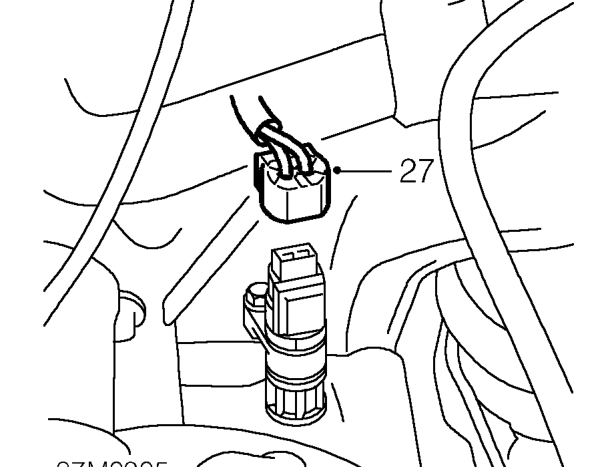

  1. Disconnect speed sensor multiplug.
Disconnect speed sensor multiplug.

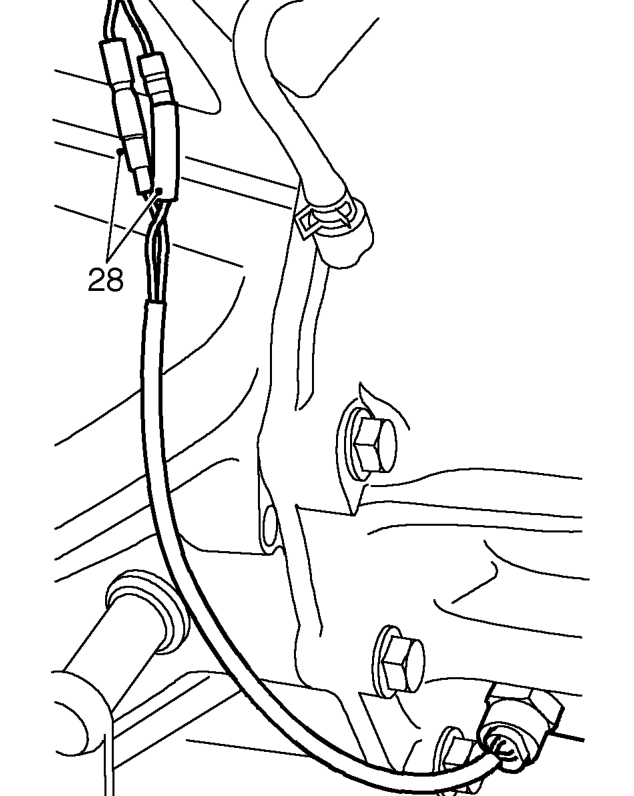

  1. Disconnect reverse light switch leads.
Disconnect reverse light switch leads.

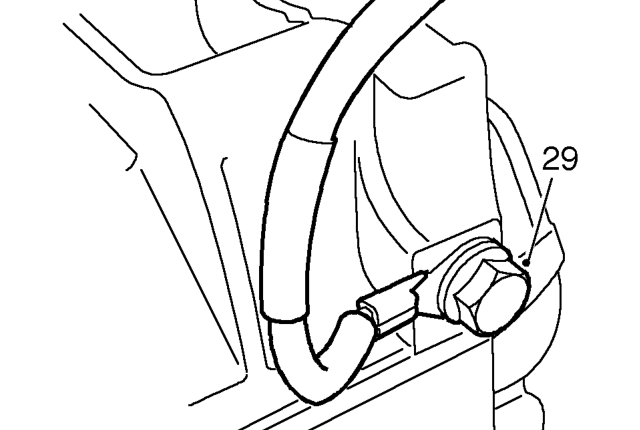

  1. Remove bolt securing earth cable to gearbox and move cable aside.
