Rover 800 Workshop Manual (1996-1999)15 · Manual gearbox - PG1
15 · Transmission

Gearbox assembly (page 7 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manual gearbox - PG1Gearbox assembly · page 7 of 9
Diagram

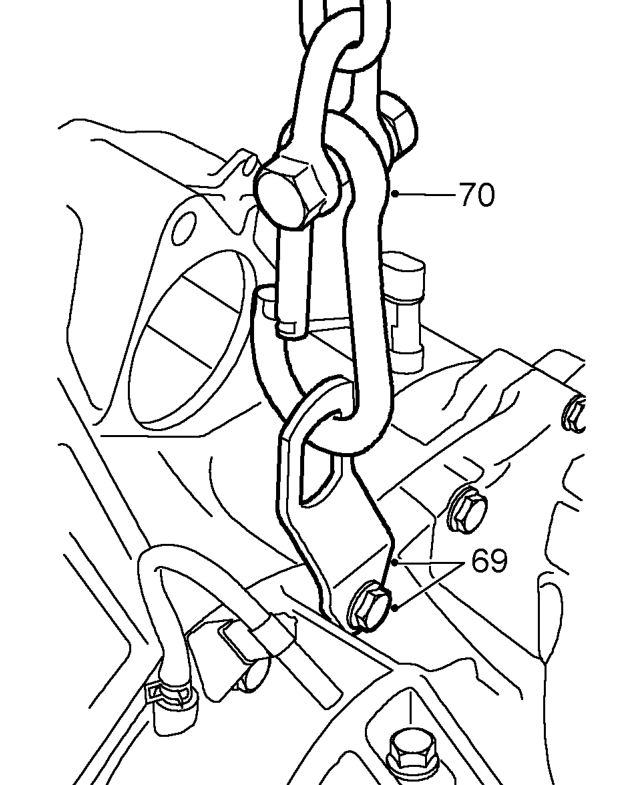

  1. Remove bolt from gearbox casing, fit suitable lifting bracket, refit and tighten bolt.
  2. Use a hoist and connect lifting chain to bracket.
Use a hoist and connect lifting chain to bracket.

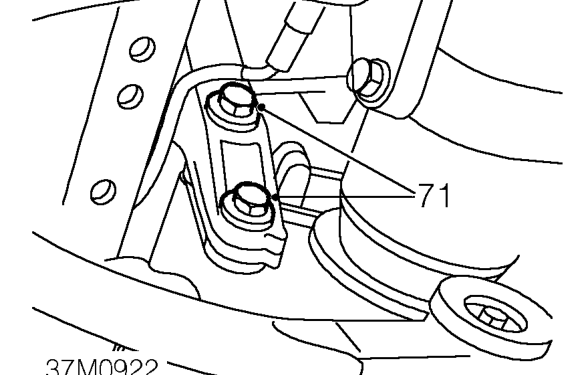

  1. Remove 2 bolts securing engine rear mounting bracket to gearbox.
Remove 2 bolts securing engine rear mounting bracket to gearbox.

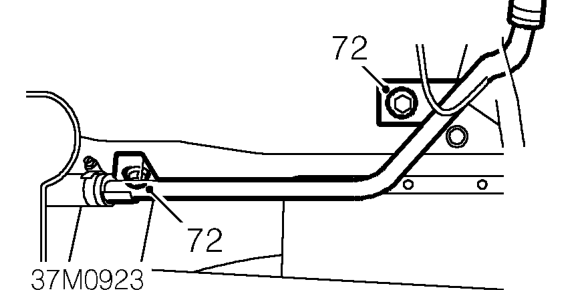

  1. Remove 2 bolts securing coolant pipe to front cross-member.
Remove 2 bolts securing coolant pipe to front cross-member.

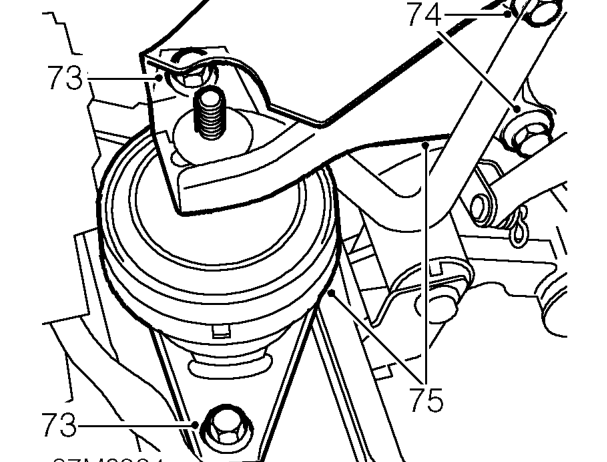

  1. Move coolant pipe aside and remove 2 bolts securing engine front mounting to crossmember.
  2. Remove 2 bolts securing engine front mounting bracket to gearbox.
  3. Release and remove mounting and mounting bracket.
