Manual gearbox - PG1Gearbox assembly · page 3 of 9

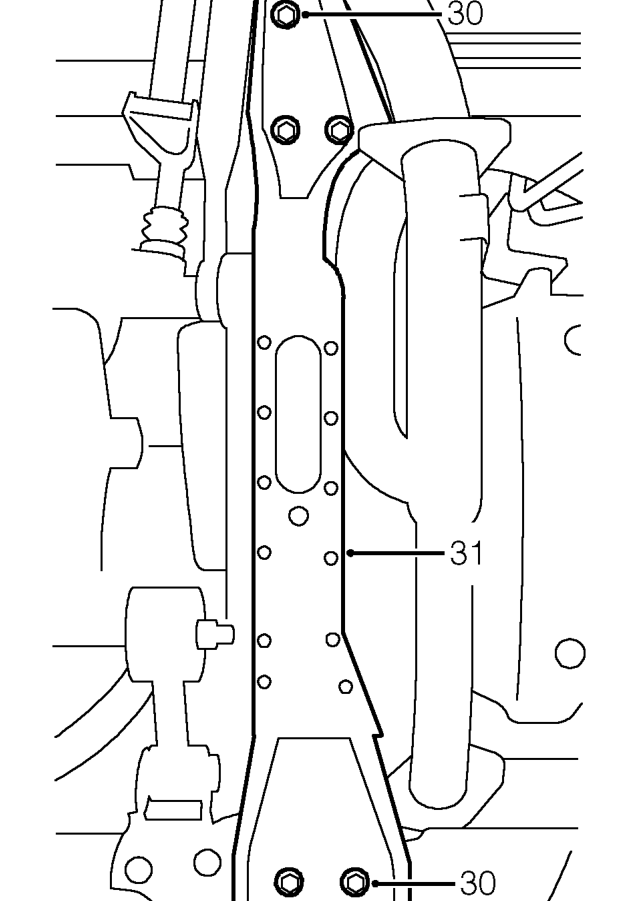

30. Remove 8 bolts securing centre beam to front and rear cross-members.
31. Remove centre beam.

32. Remove 3 bolts securing front steady bar bracket to front crossmember.
33. Remove 2 bolts securing steady bar bracket to gearbox.
34. Remove steady bar and bracket assembly.

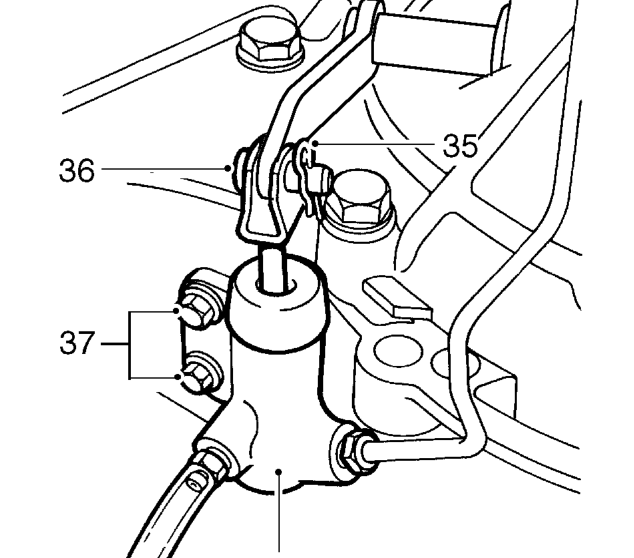

35. Remove ’R’ clip retaining clutch slave cylinder push rod clevis pin.
36. Remove washer and clevis pin.
37. Remove 2 bolts securing slave cylinder to front engine mounting bracket.
38. Position slave cylinder aside.
