Rover 800 Workshop Manual (1996-1999)15 · Manual gearbox - PG1
15 · Transmission

Gearbox assembly (page 5 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manual gearbox - PG1Gearbox assembly · page 5 of 9
Diagram

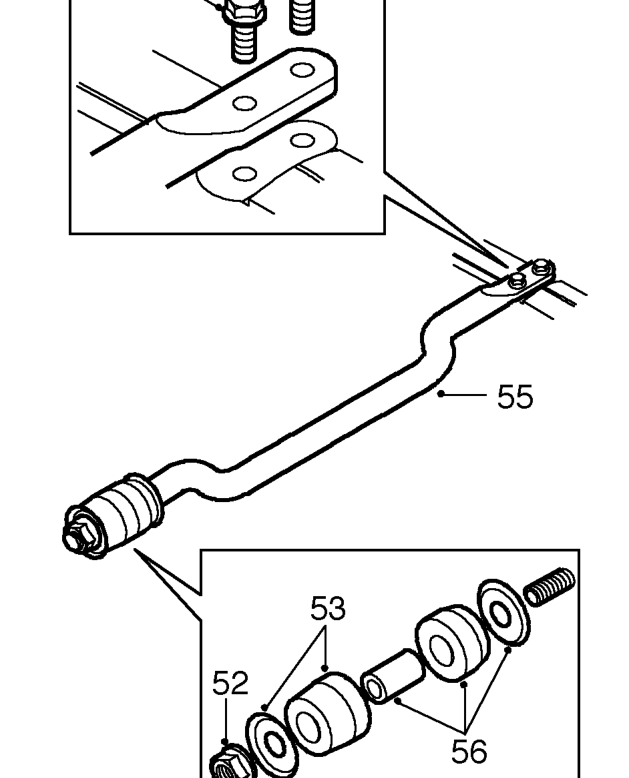

  1. Remove nut securing LH tie rod to front cross-member.
  2. Remove dished washer and bush.
  3. Remove 2 bolts securing LH tie rod to lower arm.
  4. Remove tie rod.
  5. Remove spacer, bush and dished washer from tie rod.
Remove spacer, bush and dished washer from tie rod.

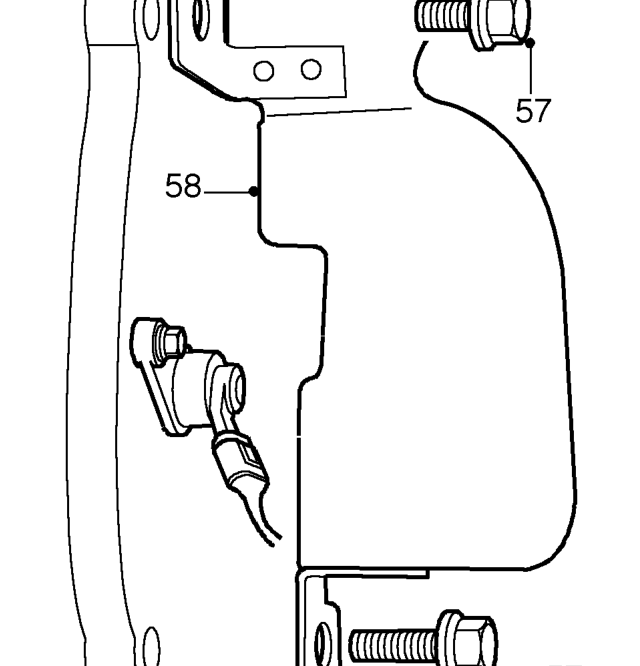

  1. Remove 2 bolts securing crankshaft position sensor heat shield.
  2. Remove heat shield.
Remove heat shield.

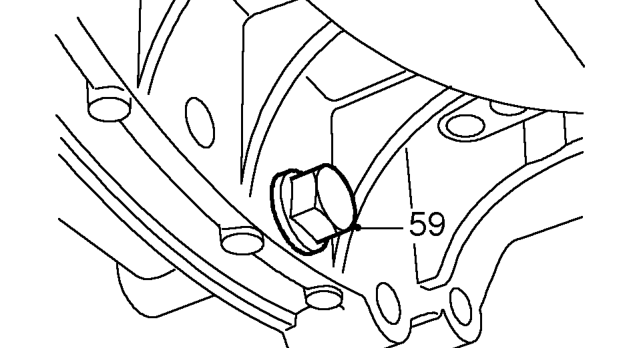

  1. Remove lower bolt securing gearbox.
