Rover 800 Workshop Manual (1996-1999)15 · Manual gearbox - PG1
15 · Transmission

Gearbox assembly (page 6 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manual gearbox - PG1Gearbox assembly · page 6 of 9
Diagram

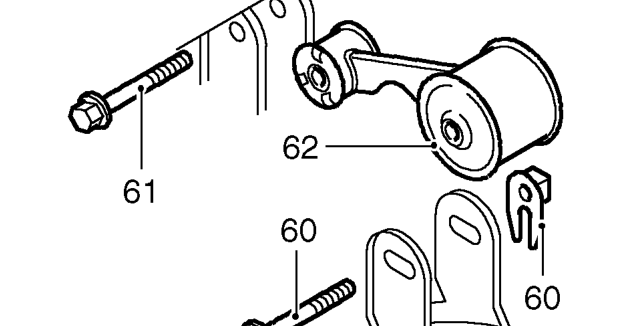

  1. Remove bolt securing engine rear steady bar to bracket and collect special nut.
  2. Remove bolt securing steady bar to body.
  3. Remove steady bar.
Remove steady bar.

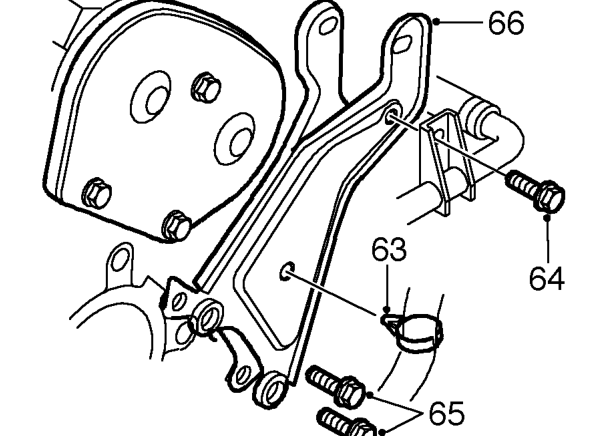

  1. Release clip securing harness to steady bar bracket.
  2. Remove bolt securing coolant pipe to steady bar bracket.
  3. Remove 2 bolts securing steady bar bracket to gearbox.
  4. Release and remove bracket.
Release and remove bracket.

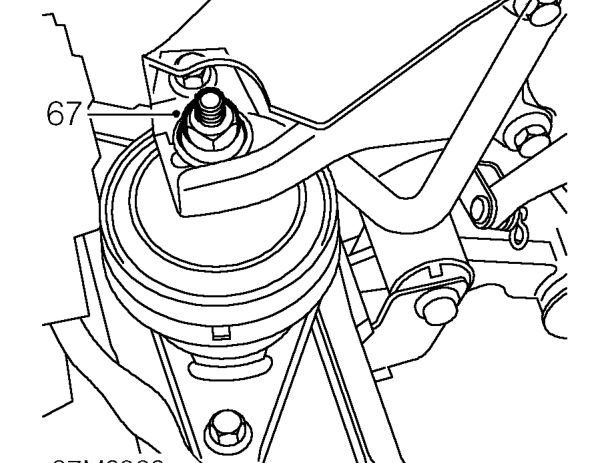

  1. Remove top nut from front engine mounting.
  2. Position trolley jack to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect engine.
