Camshaft rear timing belt

CAMSHAFT REAR TIMING BELT

Service repair no - 12.65.56

Remove

1. Disconnect battery earth lead.
2. Remove camshaft timing belt upper cover. See this section.
3. Remove camshaft rear belt cover. See this section.

4. Rotate crankshaft clockwise to align camshaft gear timing marks.

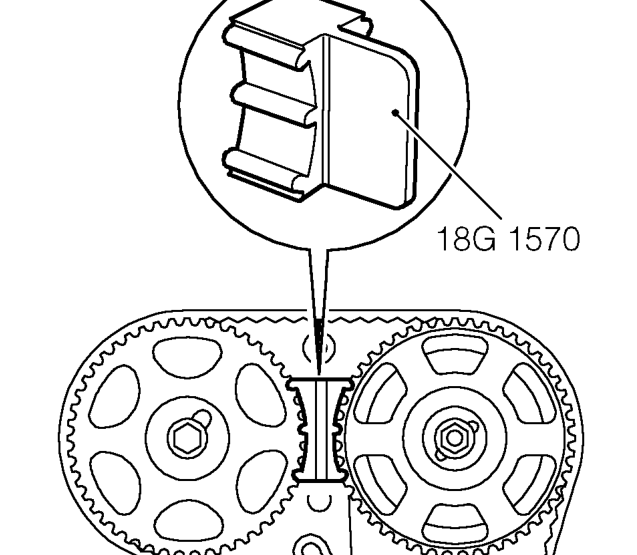

5. Fit camshaft locking tool 18G 1570.

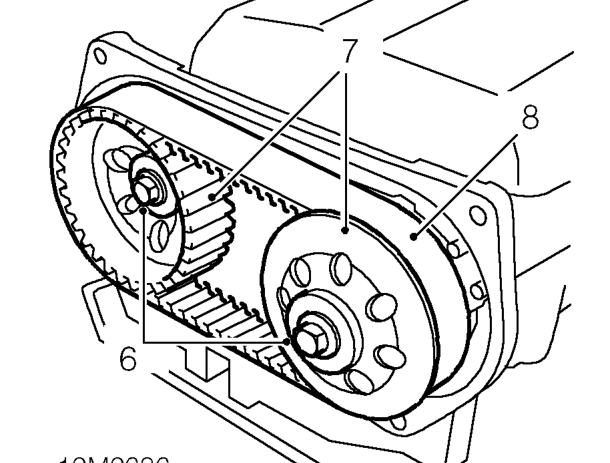

6. Remove bolt securing each camshaft rear gear.
7. Remove both gears from camshafts.
8. Remove and discard belt.

Refit

1. Clean gear to camshaft mating faces.
2. Loosely fit gears to camshafts.
3. Use a straight edge to align gear timing marks.
4. Using fingers only, fit NEW timing belt to gears.
5. Using tool 18G 1521 to restrain gears, tighten gear retaining bolts to 35 Nm.
6. Check that timing belt is positioned centrally around both gears.
7. Using a straight edge, check timing of camshaft rear gears.
8. Remove camshaft locking tool.
9. Fit camshaft rear belt cover. See this section.
10. Fit camshaft timing belt upper cover. See this section.
11. Connect battery earth lead.
