CYLINDER HEAD GASKET - MODELS WITHOUT AIR CONDITIONING

Service repair no - 12.29.02

Remove

  1. Disconnect battery earth lead.
  2. Drain engine coolant. See COOLING SYSTEM, Adjustments.
  3. Remove camshaft timing belt. See this section.
  4. Check correct alignment of timing marks on crankshaft and camshaft gears.

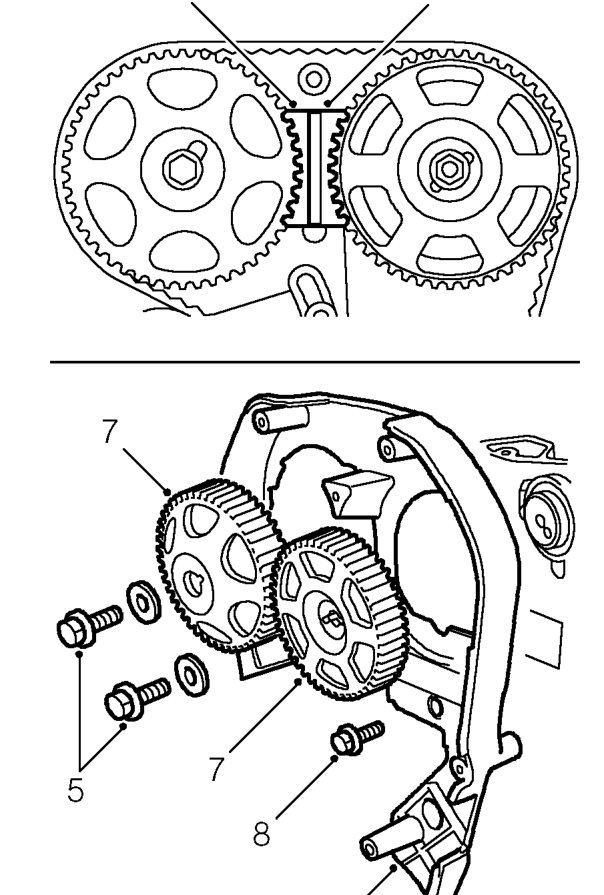

Cylinder head gasket - models without air conditioning – Check correct alignment of timing marks on crankshaft and camshaft gears.
  1. Using tool 18G 1521 to hold camshaft gears, remove 2 bolts and plain washers from camshaft gears.
  2. Remove tool 18G 1570 .
  3. Mark camshaft gears for fitting reference and remove 2 camshaft gears.
  4. Remove 2 bolts from upper part of timing belt rear cover.
  5. Remove rear cover.

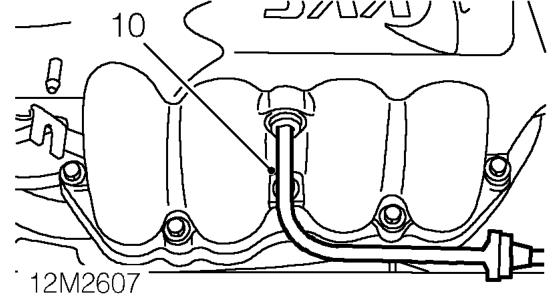

Cylinder head gasket - models without air conditioning – Remove rear cover.
  1. Disconnect brake servo vacuum hose from inlet manifold.

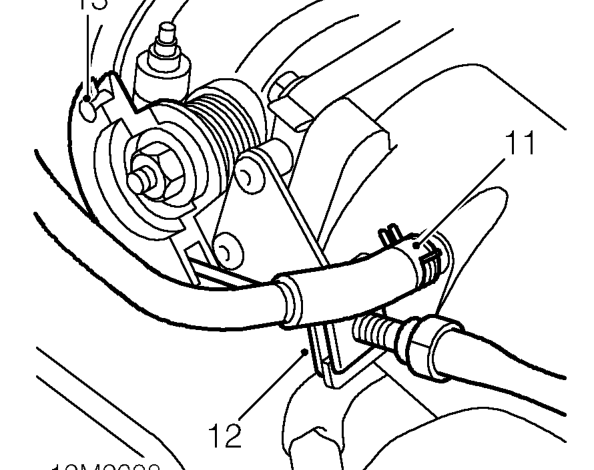

Cylinder head gasket - models without air conditioning – Disconnect brake servo vacuum hose from inlet manifold.
  1. Release clip and disconnect charcoal canister hose from inlet manifold.
  2. Release throttle cable adjustment nut from abutment bracket.
  3. Disconnect throttle cable from throttle cam.
