Camshaft rear belt cover

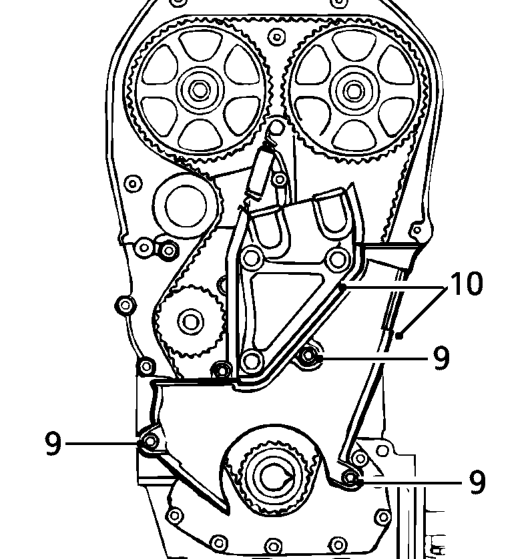

9. Remove 3 bolts securing camshaft timing belt lower cover to engine.
10. Remove camshaft timing belt lower cover and rubber seal.

Refit

1. Clean timing belt lower cover.
2. Fit timing belt lower cover ensuring correct position of rubber seal.
3. Fit bolts securing timing belt lower cover to engine and tighten to 5 Nm .
4. Position drive belt tension adjuster to power steering pump bracket, fit bolts and tighten to 25 Nm.
5. Fit power steering pump tensioner pulley and secure with washer and nut.
6. Fit crankshaft front pulley. See this section.
7. Fit timing belt upper cover. See this section.
8. Remove stand(s) and lower vehicle.
9. Connect battery earth lead.

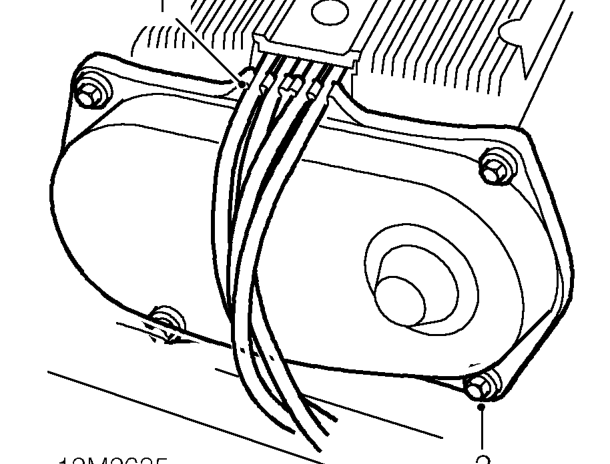

CAMSHAFT REAR BELT COVER

Service repair no - 12.65.46

Remove

1. Release 4 h.t. leads from camshaft rear belt cover.
2. Remove 4 bolts securing cover to cylinder head.
3. Remove camshaft belt cover.

Refit

1. Fit camshaft rear belt cover to cylinder head.
2. Fit bolts and tighten to 10 Nm.
3. Secure h.t. leads to clips on cover.
