Engine - K16 with VVCEngine steady bar

ENGINE STEADY BAR

Service repair no - 12.45.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

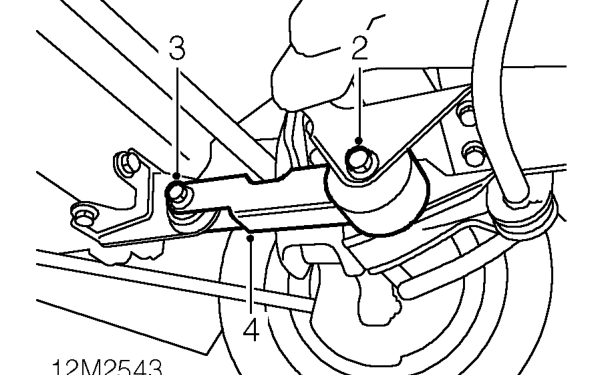

Engine steady bar – Raise front of vehicle.
  1. Remove through bolt securing engine steady bar to subframe.
  2. Remove through bolt securing engine steady bar to bracket on sump.
  3. Remove engine steady bar.

Refit

  1. Position engine steady bar to subframe and fit through bolt.
  2. Fit and tighten through bolt securing steady bar to bracket on sump to 80 Nm.
  3. Tighten through bolt securing steady bar to subframe to 80 Nm.
  4. Remove stand(s) and lower vehicle.

ENGINE LH MOUNTING

Service repair no - 12.45.30

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Fit wooden block to jack and position jack to support gearbox.

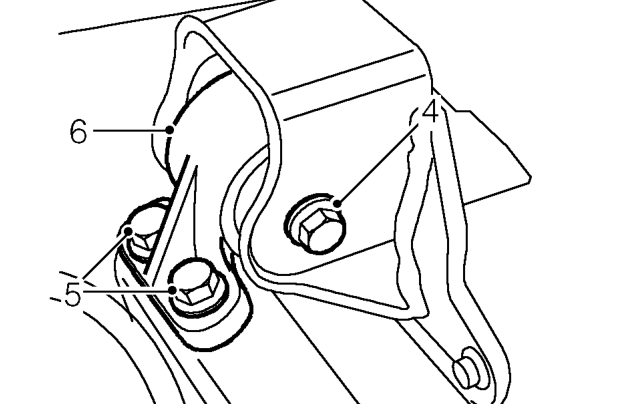

Engine lh mounting – Fit wooden block to jack and position jack to support gearbox.
  1. Remove bolt securing engine mounting to body mounting bracket.
  2. Remove 2 bolts securing engine mounting to gearbox mounting bracket.
  3. Remove engine mounting.

Refit

  1. Position engine mounting to body and gearbox mounting brackets.
  2. Fit bolts securing engine mounting to gearbox bracket and tighten to 100 Nm.
  3. Fit bolt securing engine mounting to body mounting bracket and tighten to 85 Nm.
  4. Remove jack.
  5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  6. Remove stand(s) and lower vehicle.
