Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement06 · Engine - K16 with VVC
06 · Engine

Inlet camshaft front oil seal

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Inlet camshaft front oil seal
Engine - K16 with VVCInlet camshaft front oil seal · page 1 of 3
Diagram

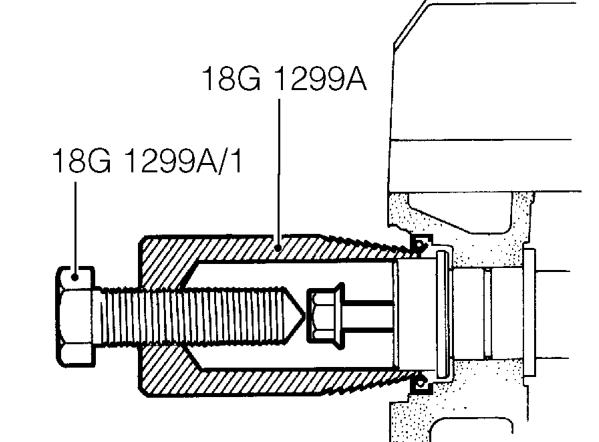

  1. Fit camshaft timing belt gear bolt to camshaft and screw tool 18G 1299A into seal.
  2. Remove oil seal by tightening centre bolt of tool 18G 1299A-1

Refit

  1. Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are removed. Do not scrape or lubricate sealing surfaces.
Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are remove

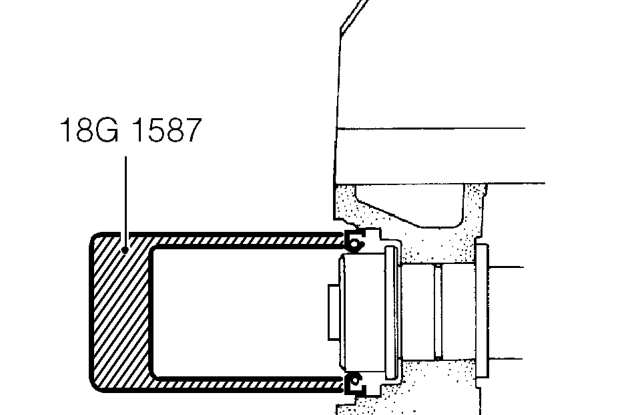

  1. Fit camshaft oil seal using tool 18G 1587.
  2. Position air filter element cover and secure with clips.
  3. Fit camshaft rear timing belt. See this section.

INLET CAMSHAFT FRONT OIL SEAL

Service repair no - 12.13.09

Remove

  1. Disconnect battery earth lead.
  2. Fit wooden block to jack and position jack to support engine.

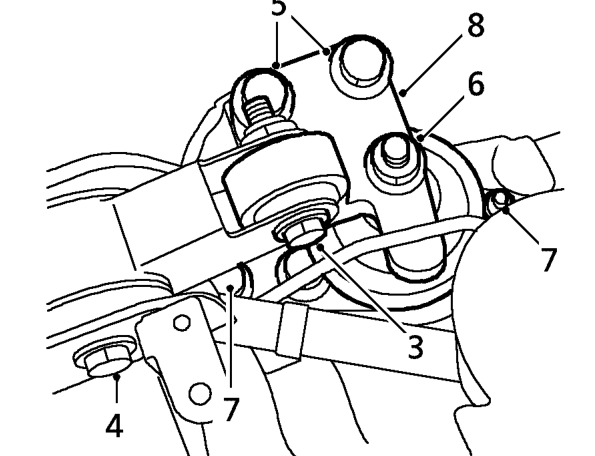

Inlet camshaft front oil seal – Fit wooden block to jack and position jack to support engine.
  1. Remove bolt securing RH steady bar to engine mounting bracket.
  2. Loosen bolt securing RH steady bar to body and position steady bar aside.
  3. Remove 2 bolts securing engine mounting bracket to engine.
  4. Remove nut securing mounting bracket to engine mounting.
  5. Loosen 2 nuts securing restraint bar to body and position aside.
  6. Remove engine mounting bracket.
  7. Remove camshaft timing belt upper cover. See this section.
