Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement06 · Engine - K16 with VVC
06 · Engine

Inlet camshaft rear oil seal

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Inlet camshaft rear oil seal
Engine - K16 with VVCInlet camshaft rear oil seal · page 1 of 2

INLET CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.10

Remove

  1. Remove camshaft rear timing belt. See this section.
Inlet camshaft rear oil seal – Remove camshaft rear timing belt. See this section.

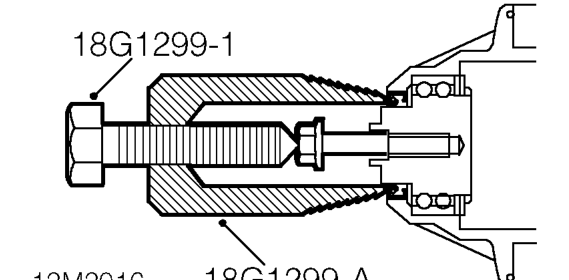

  1. Fit camshaft timing belt gear bolt to camshaft and screw tool 18G 1299A into seal.
  2. Remove oil seal by tightening centre bolt of tool 18G 1299A-1

Refit

  1. Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are removed. Do not scrape or lubricate sealing surfaces.
Inlet camshaft rear oil seal – Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are remove

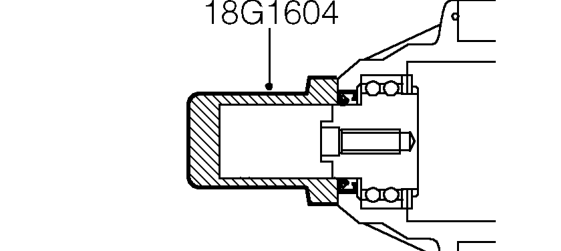

  1. Fit camshaft oil seal using tool 18G 1604 until seal is flush to mechanism face.
  2. Fit camshaft rear timing belt. See this section.

CRANKSHAFT FRONT PULLEY

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  2. Remove starter motor. See ELECTRICAL, Repairs.
Crankshaft front pulley – Remove starter motor. See ELECTRICAL, Repairs.

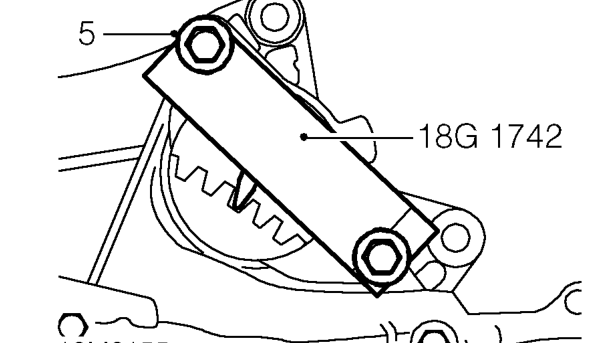

  1. Fit flywheel locking tool 18G 1742 to flywheel housing and secure with 2 bolts.
