Engine - K16 with VVCOil pump

OIL PUMP

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.
  2. Remove crankshaft gear.

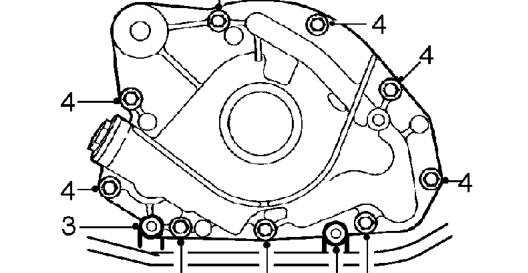

Oil pump – Remove crankshaft gear.
  1. Remove 2 bolts securing engine harness to oil pump.
  2. Remove 9 bolts securing oil pump to cylinder block.

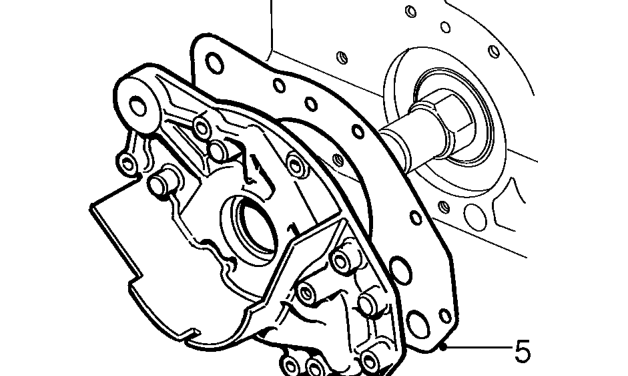

Oil pump – Remove 9 bolts securing oil pump to cylinder block.
  1. Remove oil pump and discard gasket.

Refit

  1. Clean oil pump holes in cylinder block using a tap.
  2. Clean mating surfaces of oil pump and cylinder block.
  3. Clean oil seal running surface on crankshaft.
  4. Lubricate oil pump seal.
  5. Fit new oil pump gasket to cylinder block and position oil pump.
  6. Apply Loctite 242 to bolt threads. Fit bolts and tighten to 9 Nm.
  7. Align engine harness to oil pump, fit bolts and tighten to 9 Nm.
  8. Clean crankshaft gear.
  9. Fit gear to crankshaft.
  10. Fit camshaft timing belt. See this section.
