OIL PRESSURE SWITCH

Service repair no - 12.60.50

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Position container below engine oil filter to collect spillage.

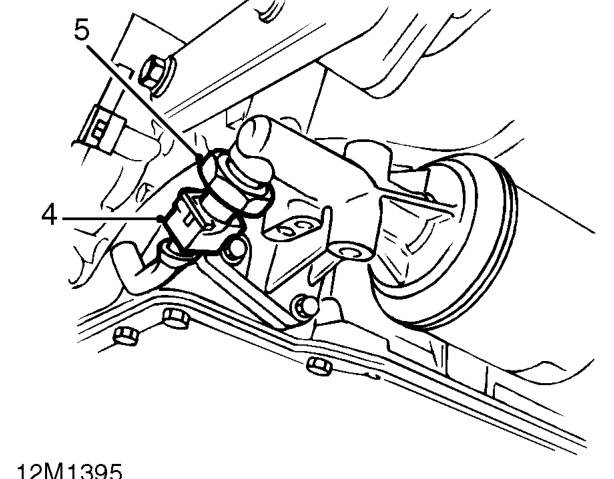

Oil pressure switch – Position container below engine oil filter to collect spillage.
  1. Disconnect multiplug from oil pressure switch.
  2. Remove oil pressure switch.

Refit

  1. Clean oil pressure switch threads.
  2. Fit oil pressure switch and tighten to 15 Nm.
  3. Connect multiplug to oil pressure switch.
  4. Remove stand(s) and lower vehicle.
  5. Top-up engine oil. See MAINTENANCE.
  6. Connect battery earth lead.

CAMSHAFT TIMING BELT

Service repair no - 12.65.18

Remove

  1. Disconnect battery earth lead.
  2. Remove camshaft timing belt upper cover. See this section.
  3. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  4. Rotate crankshaft clockwise to align camshaft gear timing marks.

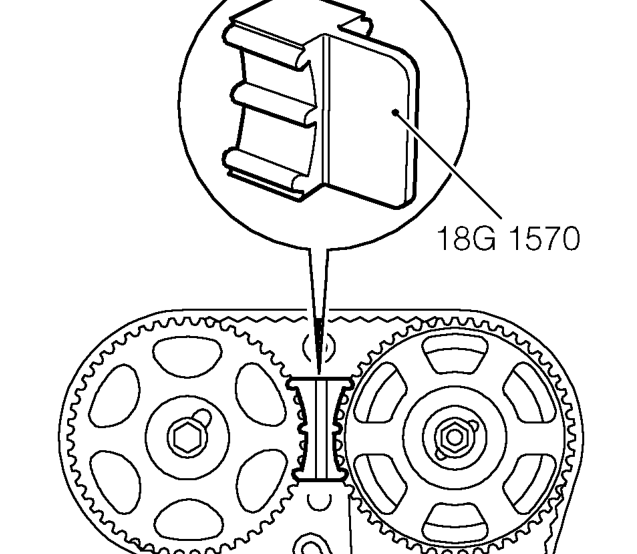

Camshaft timing belt – Rotate crankshaft clockwise to align camshaft gear timing marks.
  1. Fit tool 18G 1570 to camshaft gears.
  2. If camshaft timing belt is to be reused, mark position of tensioner backplate for belt tensioning reference. Mark direction of rotation on belt with chalk.
