Oil pressure switch (page 2 of 3)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement

Section

Repairs

Engine - K16 with VVCOil pressure switch · page 2 of 3

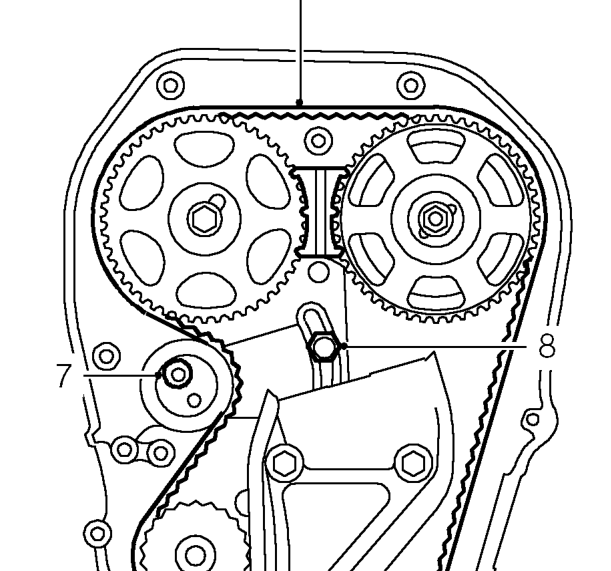

7. Loosen timing belt tensioner pulley Allen screw₁ /₂ turn.₁
8. Loosen timing belt tensioner backplate bolt /₂ turn.
9. Position tensioner fully down to OFF position and tighten backplate bolt to 10 Nm.
10. Ease timing belt from camshaft gears using fingers only.
11. Remove starter motor. See ELECTRICAL, Repairs.

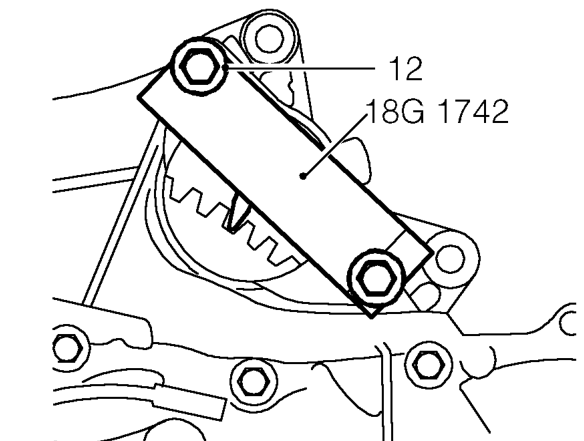

12. Lock crankshaft using special tool 18G 1742 and secure with 2 starter motor bolts.

13. Remove crankshaft pulley bolt.
14. Remove crankshaft pulley.

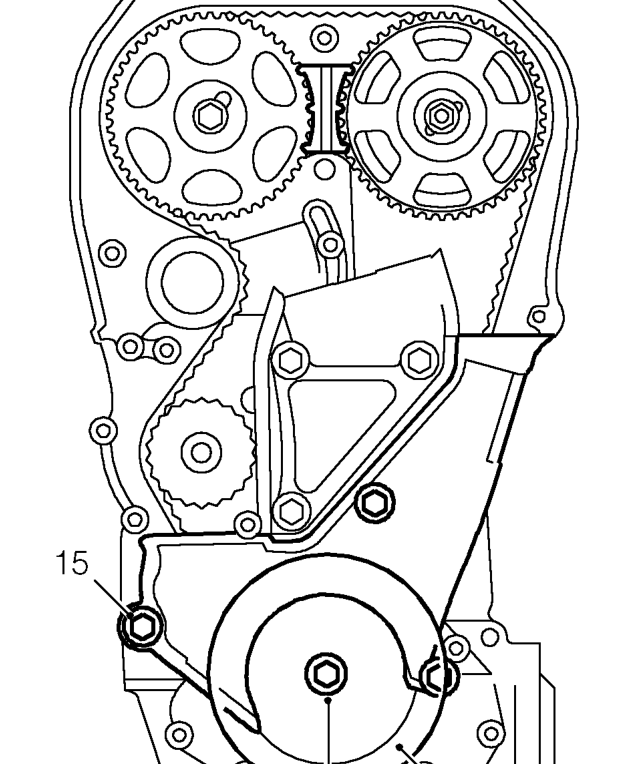

15. Remove 3 bolts securing lower timing belt cover and remove cover.
16. Fit wooden block to jack and position jack to support engine.

06 Engine
