SUMP GASKET

Service repair no - 12.60.38

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Drain engine oil. See MAINTENANCE.
  3. Fit new sealing washer to engine oil drain plug. Fit drain plug and tighten to 25 Nm.
Sump gasket – Fit new sealing washer to engine oil drain plug. Fit drain plug and tighten to 25 Nm.

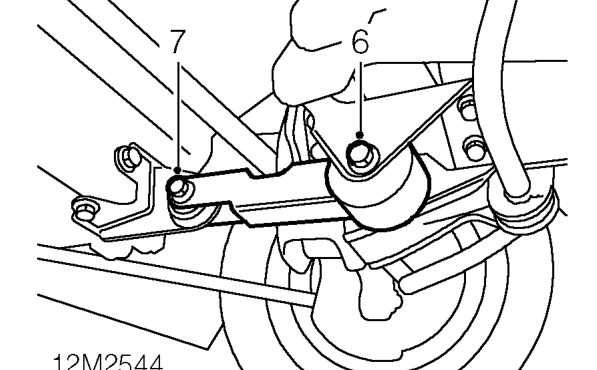

  1. Loosen through bolt securing engine steady bar to subframe.
  2. Remove through bolt securing engine steady bar to bracket on engine sump.
Sump gasket – Remove through bolt securing engine steady bar to bracket on engine sump.

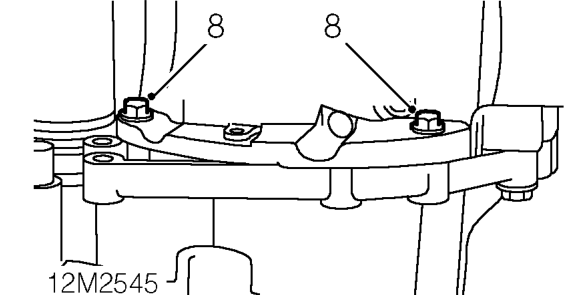

  1. Remove 2 bolts securing sump to gearbox.
Sump gasket – Remove 2 bolts securing sump to gearbox.

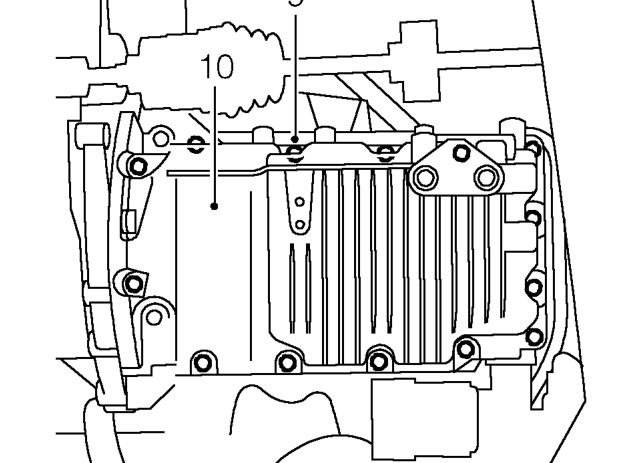

  1. Remove 14 bolts securing sump to engine bearing ladder.
  2. Release and remove engine sump.

Do not carry out further dismantling if component is removed for access only.

Sump gasket – Do not carry out further dismantling if component is removed for access only.

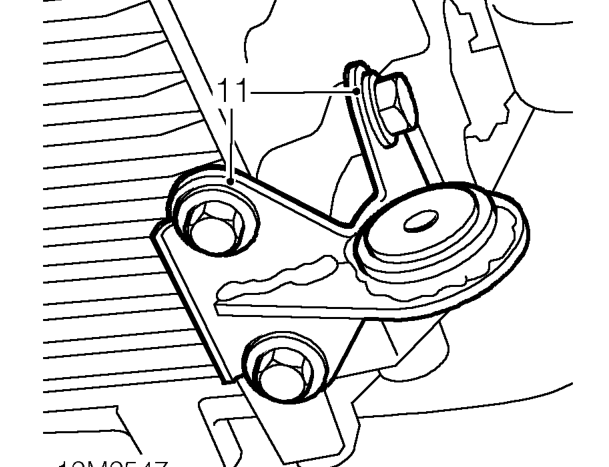

  1. Remove 4 bolts securing engine rear mount to sump, remove mount.
  2. Fit mount to sump, fit bolts and tighten bolts to 80 Nm.
