Sump gasket (page 2 of 2)

Refit

1. Clean inside of sump. Remove all traces of RTV sealant using a suitable solvent.
2. Apply RTV sealant to sump joint face.

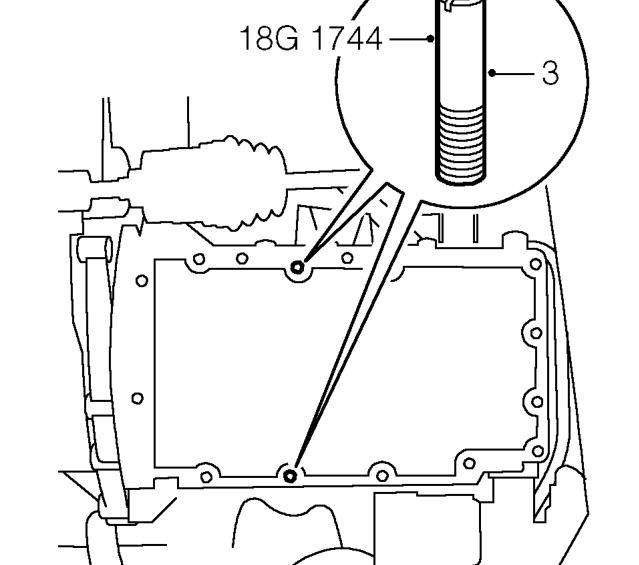

3. Fit sump alignment pins 18G 1744 to bearing ladder as shown.
4. Position sump on alignment pins, fit bolts but do not tighten.
5. Remove sump alignment pins and replace with bolts.

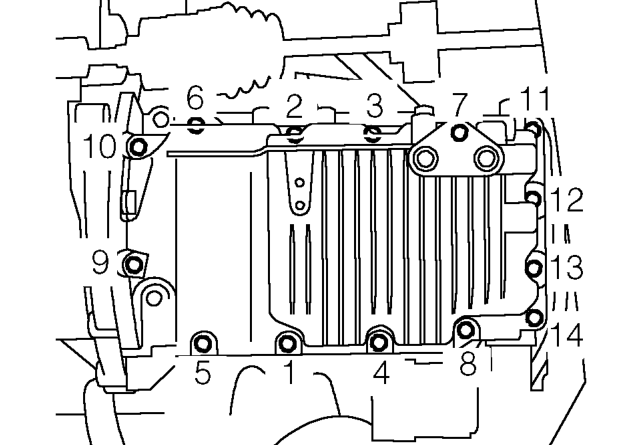

6. Progressively tighten sump bolts in sequence shown to 10 Nm.
7. Fit bolts, sump to gearbox, and tighten to 25 Nm.
8. Align engine steady bar to bracket on sump, fit through bolt and tighten to 80 Nm.
9. Tighten engine steady bar to subframe bolt to 80 Nm.
10. Fit exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
11. Fill engine with oil. See MAINTENANCE.
12. Remove stand(s) and lower vehicle.
13. Connect battery earth lead.
