Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement06 · Engine - K16 with VVC
06 · Engine

Exhaust camshaft rear oil seal

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Exhaust camshaft rear oil seal
Engine - K16 with VVCExhaust camshaft rear oil seal
Diagram

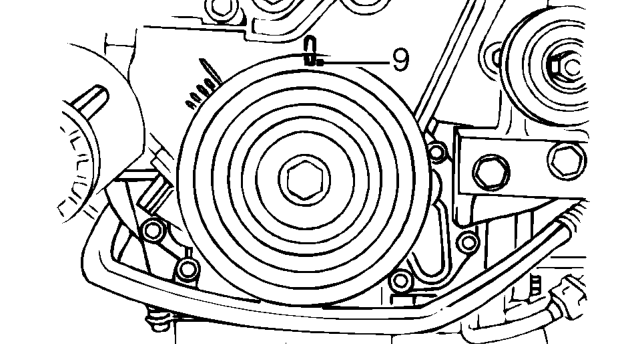

  1. Check crankshaft pulley timing mark is aligned with mark on lower cover.
  2. Using fingers only, fit timing belt over camshaft gears. Ensure belt run between the crankshaft gear and the camshaft gears is kept taut during the fitment procedure.
  3. Check that timing belt is positioned centrally around all the gears and tensioner pulley.
  4. Remove tool 18G 1570.
  5. Tension camshaft timing belt. See Adjustments.
  6. Fit camshaft timing belt upper cover. See this section.
  7. Connect battery earth lead.

EXHAUST CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.08

Remove

  1. Remove camshaft rear timing belt. See this section.
Exhaust camshaft rear oil seal – Remove camshaft rear timing belt. See this section.

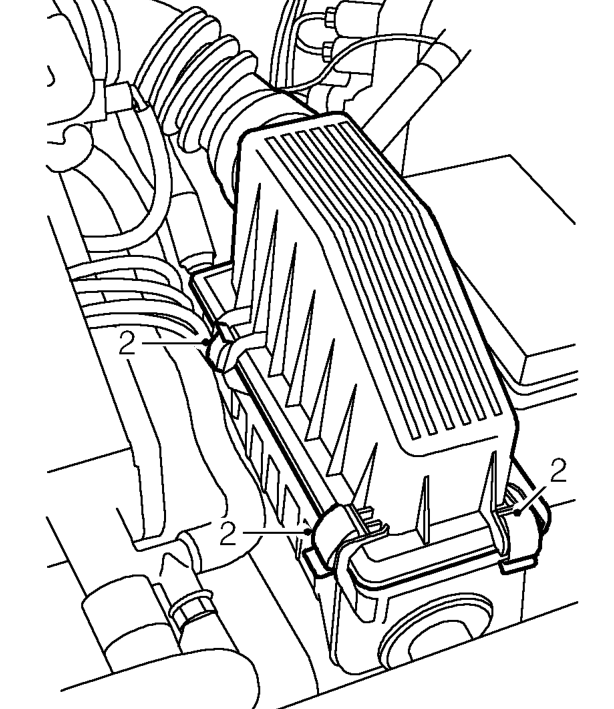

  1. Release 4 clips securing air filter element cover and position cover aside.
