BodyRefit · page 2 of 2

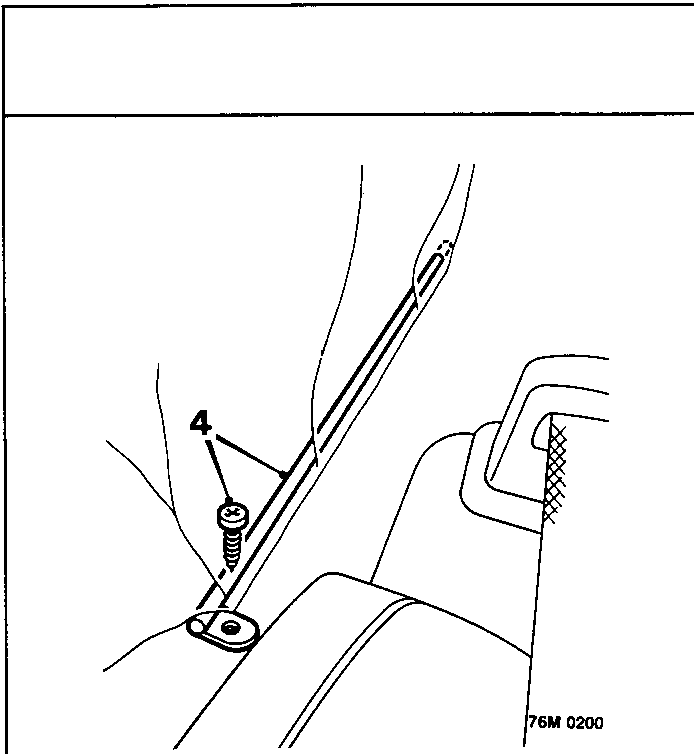

Diagram showing headlining tension rod screws at the rear shelf, callout number 4.
  1. Remove headlining tension rod screws, at either side of rear shelf, and remove tension rods.

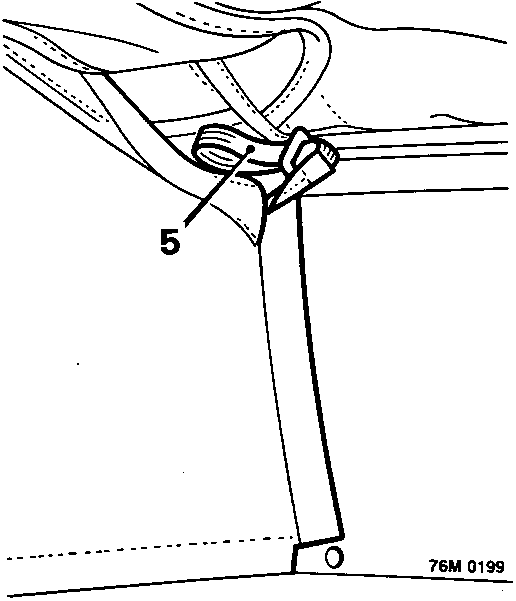

Diagram showing elastic straps at the rear of the headlining being released from hooks in the lower rail of the backlight, callout number 5.
  1. Release elastic straps at rear of headlining from hooks in lower rail of backlight.

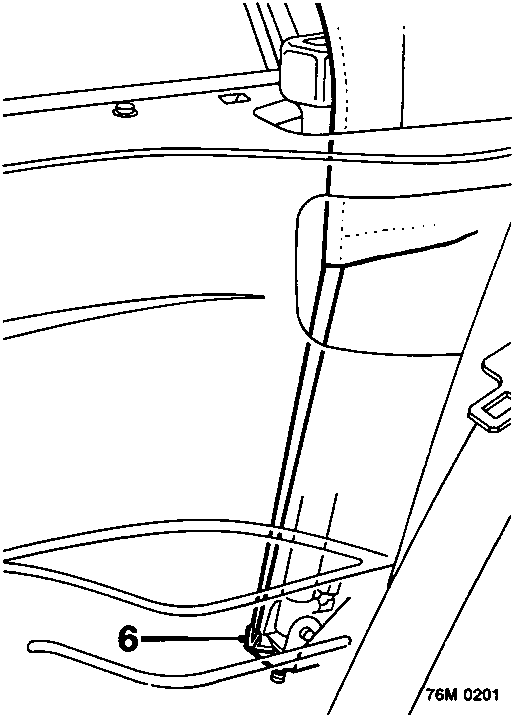

Diagram showing the area between the hood ram and rear quarter trim panel, with a wire clip on the headlining strap, callout number 6.
  1. Reach between hood ram and rear quarter trim panel to disengage elastic headlining strap from base of hood ram. Remove wire clip from headlining strap.

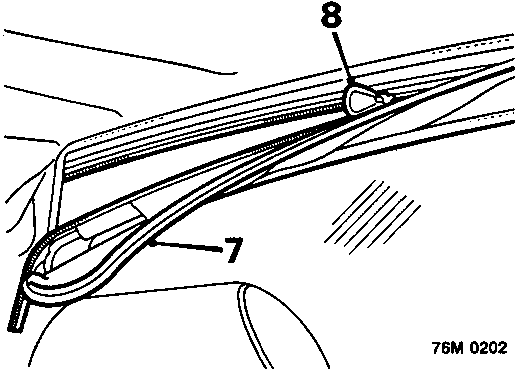

Diagram showing the top of the backlight where Velcro is peeled away to reveal a zip, callout numbers 7 and 8.
  1. Peel Velcro away from top of backlight to reveal zip.
  2. Unfasten backlight zip and lay backlight in rear shelf.
