Body panels and frameR.r. bonnet

R.R. BONNET

Operation 7210E20 · EXTERNAL PARTS

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Open the bonnet.

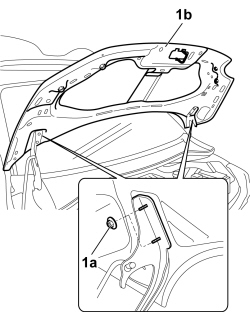

1. Undo the fixing nuts (1a) for the hinges, on both sides, and remove the bonnet lid (1b).

Carry out the operation with the help of a second mechanic.

- Rest the bonnet on a suitable support.

Refitting

- Place the bonnet in position and screw in the fixing nuts without tightening them.

Op. 7025A10 BONNET LID - ALIGNMENT

- Close the bonnet.
