R.R. FRONT WING

Operation 7210E18 · EXTERNAL PARTS

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Raise the bonnet lid.

- Protect the corner of the door, the underdoor area and the base of the front pillar by applying adhesive tape.

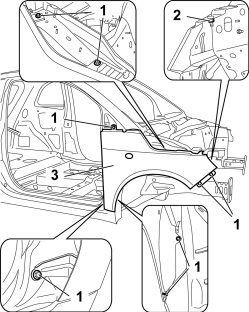

1. Undo the retaining bolts.

2. Undo the nut.

3. Remove the front wing

Refitting

- Check that the wing is not damaged.

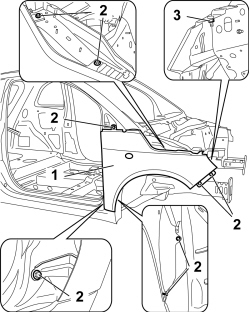

1. Position the wing.

2. Screw in the fixing bolts without tightening them.

3. Screw in the fixing nut without tightening it.

- Check the alignment of the wing with the door and the bonnet lid.

Op. 7025A10 BONNET LID - ALIGNMENT

Op. 7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT

- Tighten the bolts and the nut.
