R.R. REAR BUMPER

Operation 7210E66 · EXTERNAL PARTS

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Position the vehicle on a lift.

- Disconnect the negative battery terminal.

- Remove both rear light clusters.

Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.

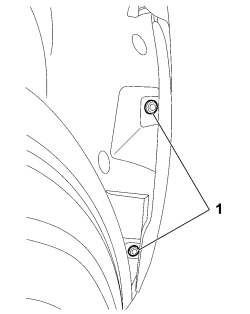

1. Undo the bolts securing the rear wheel compartment.

1. Undo nut (1a) and separate rear wheel compartment (1b) at the contact area with the rear bumper.

- Carry out the same operation for the remaining rear wheel compartment.

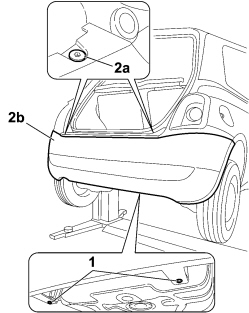

1. Undo the lower bolts.

2. Undo upper bolts (2a) and remove rear bumper (2b), prising up the retaining clips from their housings.

Refitting

- Position the rear bumper in its housing, fitting the retaining clips in their housing.

- Screw in the lower and upper bolts.

- Place both rear wheel compartments in position and screw in the bolts and nut.

- Fit both rear light clusters.

Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.

- Connect the negative battery terminal.

- Remove the vehicle from the lift.
