R.R. FRONT WING MOUNTING BRACKET

Operation 7210A30 · STRUCTURAL ELEMENTS (FRONT PART)

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Ensure that the components connected are not distorted by checking the body alignment measurements with suitable equipment (reference rigs, templates or gauges).

- Straighten the body as necessary.

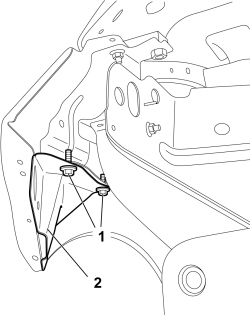

1. Undo the bolts fixing the bracket to the wing.

1. Undo the bolts fixing the bracket to the side panel.

2. Remove the wing mounting bracket.

Refitting

- Straighten the edges of the vehicle using a hammer and dolly block.

- Position the wing mounting bracket and secure it using the bolts.
