UPPER FRONT CROSSMEMBER - R.R.

Operation 7210A17 · STRUCTURAL ELEMENTS (FRONT PART)

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Position the vehicle on a lift.

Op. 4450B12 FRONT WHEELS (TWO) - R+R

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 7210E10 R.R. FRONT BUMPER

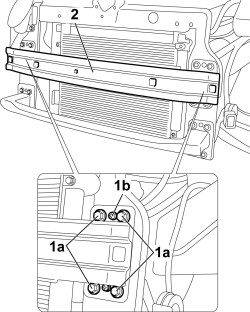

1. Undo the fixing bolts (1a) and nuts (1b).

- Carry out the same operation for the remaining side.

2. Remove the upper front crossmember.

Refitting

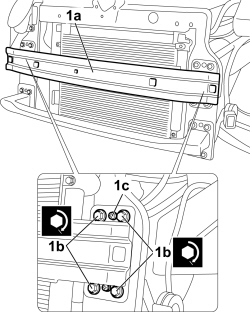

1. Place the upper front crossmember (1a) in position and tighten the retaining bolts (1b) and nuts (1c) to torque.

Component	Fastening	dia	Value (daNm)	Validity
Front end (lower fastenings on body)	Bolt	M8	4.0	all versions

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 4450B12 FRONT WHEELS (TWO) - R+R

- Remove the vehicle from the lift.
