R.R THIRD LOAD LINE
Removing
- Position the vehicle on a lift.
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
Op. 4450B12 FRONT WHEELS (TWO) - R+R
Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.
Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

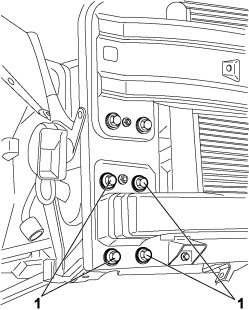

1. Unscrew the lower crossmember fixing bolts.
1. Undo the track control arm side panel/strut fixing bolts.
- Remove the panel/strut from its housing.
Refitting
- Place the side panel/strut in position.
1. Tighten the side fixing bolt to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Third load line (on suspension crossmember side fastening) | Bolt | M12x1.25 | 7.0 | all versions |
1. Tighten the panel/strut fixing bolts to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Third load line (on suspension crossmember) | Bolt | M10x1.25 | 5.5 + 90° | all versions |
1. Tighten the bolts fixing the lower crossmember to the recommended torque.
Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.
Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.
Op. 4450B12 FRONT WHEELS (TWO) - R+R
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
- Remove the vehicle from the lift.
