Land Rover Discovery II (UK)25 · Automatic gearbox - ZF4HP22/24
25 · Transmission

gearbox - V8 (page 3 of 5)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Automatic gearbox - ZF4HP22/24gearbox - V8 · page 3 of 5
Diagram

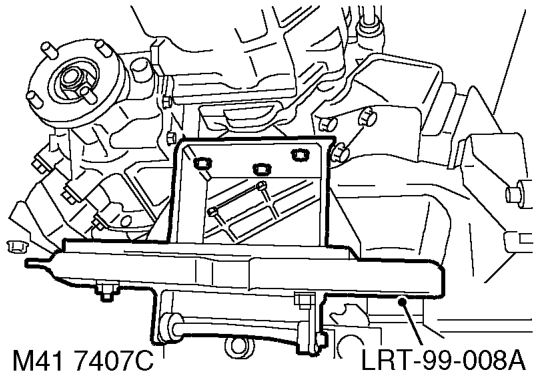

  1. Position gearbox support jack and secure tool LRT-99-008A to support plate on jack.

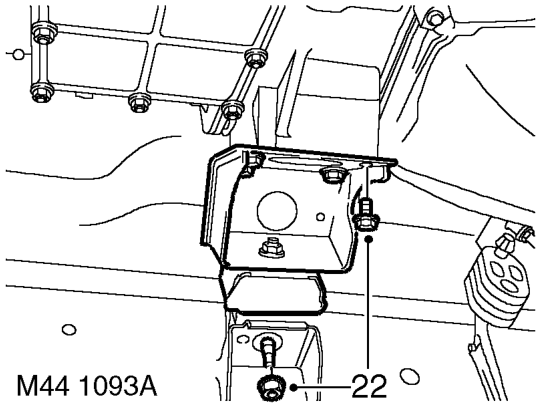

  2. Position a second support jack under engine using a block between engine sump and jack to prevent damage to sump.
Position a second support jack under engine using a block between engine sump and jack to

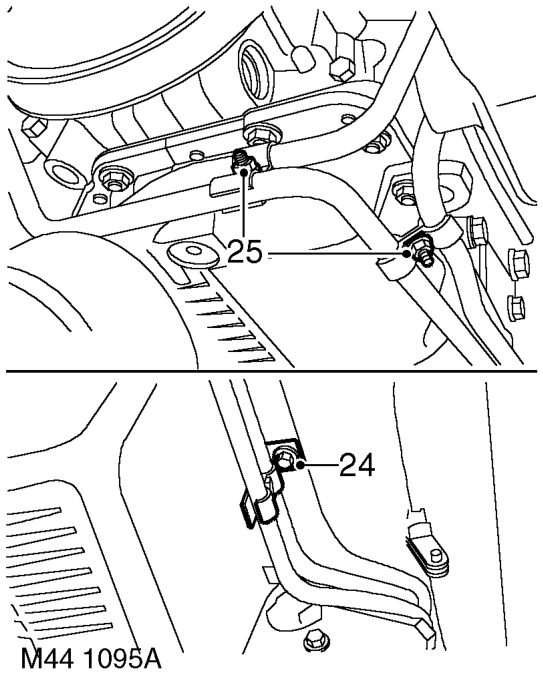

  1. Remove bolt securing gearbox oil cooler pipe
  2. Remove bolt and 2 nuts securing clamps to oil

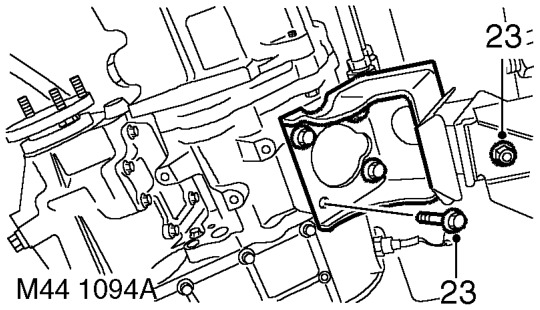

  3. Remove 4 bolts and nut, remove engine LH rear mounting.
Remove 4 bolts and nut, remove engine LH rear mounting.
  1. Loosen gearbox oil cooler pipe unions, release
  2. Remove 4 bolts and nut, remove engine RH rear mounting.
Remove 4 bolts and nut, remove engine RH rear mounting.

clips to engine.

cooler pipes and remove clamps.

cooler pipes and remove clamps.

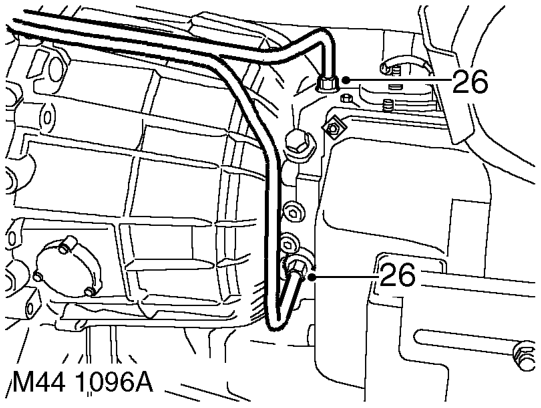

pipes from gearbox and discard 'O' rings.

CAUTION: Always fit plugs to open connections to prevent contamination.
