Land Rover Discovery II (UK)25 · Automatic gearbox - ZF4HP22/24
25 · Transmission

gearbox - V8 (page 5 of 5)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Automatic gearbox - ZF4HP22/24gearbox - V8 · page 5 of 5
  1. Fit front propeller shaft. PROPELLER SHAFTS, REPAIRS, Torque converter and oil seal Propeller shaft - front.
  2. Fill transfer gearbox with oil.

$% 44.17.07 MAINTENANCE, PROCEDURES, Transfer box.

Remove

  1. Fill automatic gearbox with oil. MAINTENANCE, PROCEDURES, Automatic gearbox.
  2. Position intermediate silencer and secure to mounting rubbers.
  3. Clean silencer and tail pipe mating faces.
  4. Position new gasket to tail pipe and tighten nuts to 40 Nm (30 lbf.ft).
  5. Fit exhaust front pipe. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Front pipe.
  6. Position centre cross member, fit bolts and tighten to 26 Nm (19 lbf.ft).
  7. Connect battery earth lead.
  8. Fit battery cover and secure fixings.
  9. Check and adjust selector cable. AUTOMATIC GEARBOX - ZF4HP22 - 24, ADJUSTMENTS, Cable - selector.

1. Remove automatic gearbox. l AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Gearbox - convertor and transfer gearbox - Diesel. l AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Gearbox - convertor and transfer gearbox - V8.

1. Remove automatic gearbox. l AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Gearbox - conver
  1. Remove retaining strap from torque convertor.

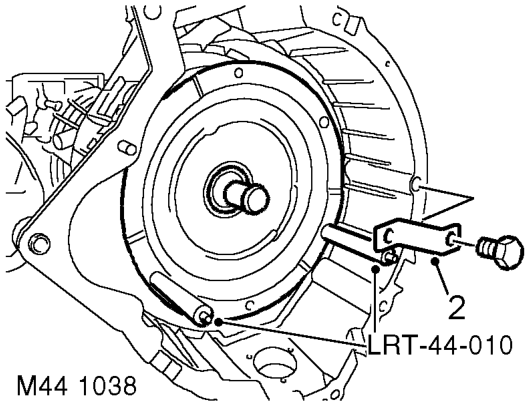

  2. Fit tool LRT-44-010 to torque converter and remove torque converter from gearbox.
  3. Remove tool LRT-44-010 from converter.
Remove tool LRT-44-010 from converter.

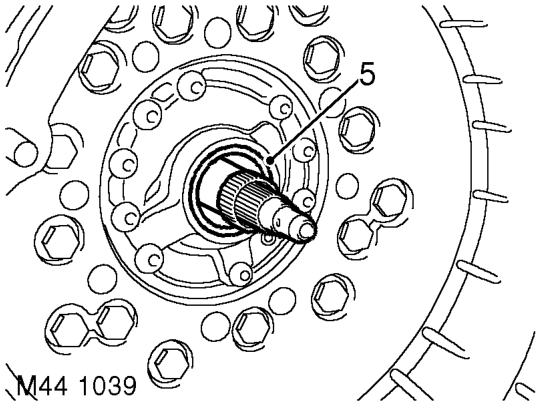

  1. Remove oil seal from converter housing.
