Engine management system - Td5Intercooler · page 2 of 3

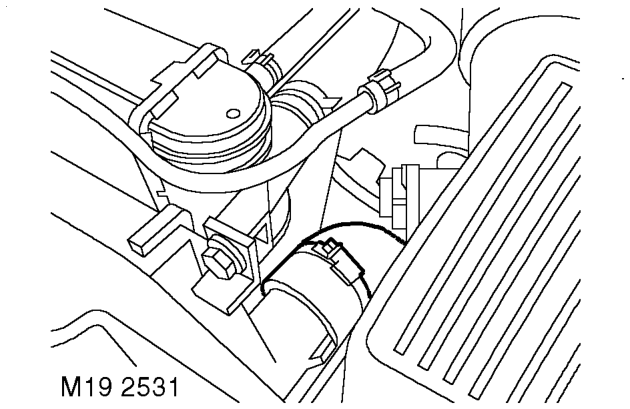

Diagram

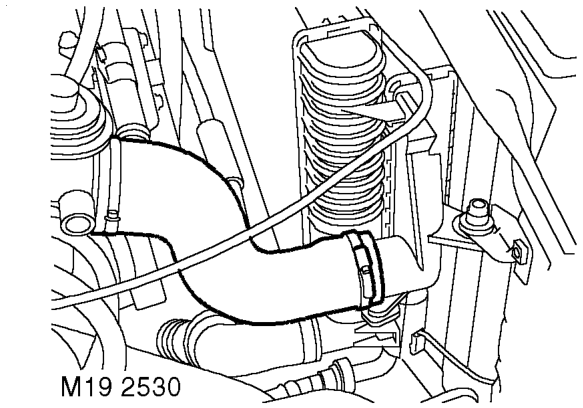

  1. Loosen clip and disconnect inlet hose from intercooler.
Loosen clip and disconnect inlet hose from intercooler.

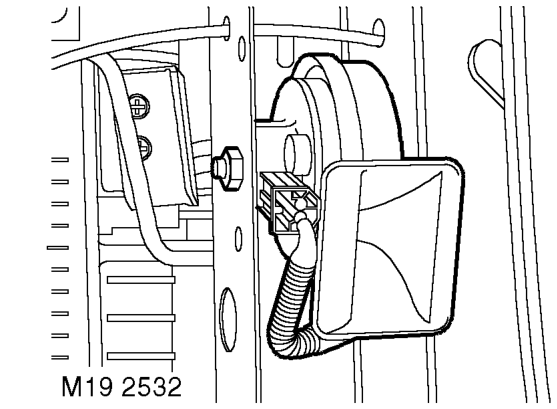

  1. Loosen clip and disconnect outlet hose from intercooler.
Loosen clip and disconnect outlet hose from intercooler.

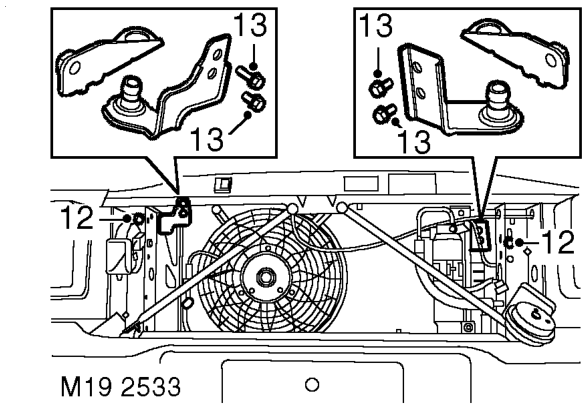

  1. Remove nut securing horn and move horn aside.
Remove nut securing horn and move horn aside.
  1. Remove 2 bolts securing radiator LH and RH upper mounting brackets to body panel and remove brackets.
  2. Remove 4 screws securing LH and RH upper mounting brackets to condenser.

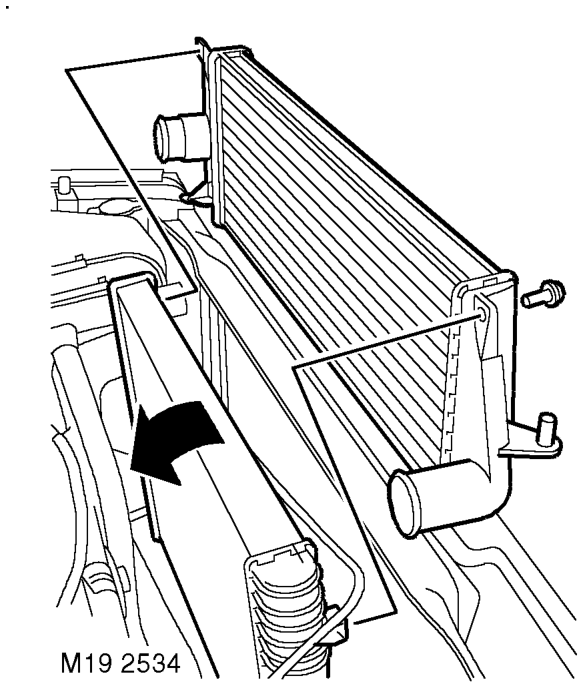

  3. Remove brackets with rubber mounts from intercooler.
Remove brackets with rubber mounts from intercooler.
  1. Remove 2 bolts securing intercooler to radiator.
  2. Release radiator lower mountings from location in chassis and carefully move radiator towards engine sufficiently only to release intercooler from radiator.
  3. Remove intercooler.

Refit

  1. Fit intercooler to radiator, and fit and tighten bolts.
  2. Engage radiator lower mountings in chassis.
