Engine - V8Reassembly

Reassembly

  1. Clean seal register in timing gear cover and crankshaft pulley.
Reassembly – Clean seal register in timing gear cover and crankshaft pulley.

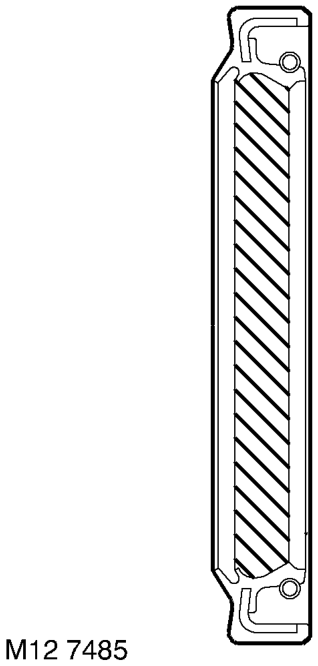

  1. Apply Retinax LX grease to inner recess of new oil seal until recess is half filled with grease.Do not allow grease to coat any other part of seal. Do not apply oil to seal.
  2. Apply smear of Retinax LX grease to seal running surface on crankshaft.
Reassembly – Apply smear of Retinax LX grease to seal running surface on crankshaft.

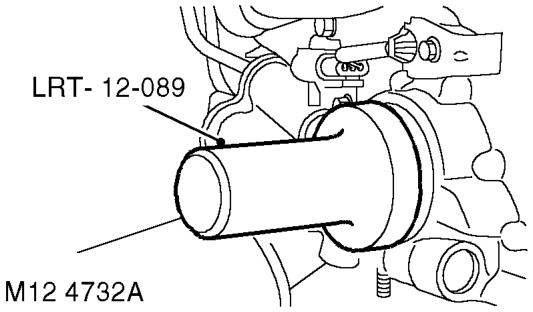

  1. Fit seal to timing gear cover using tool LRT-12- 089 .
  2. Secure tool LRT-12-080 to crankshaft pulley with 2 bolts. Fit crankshaft pulley.
  3. Fit crankshaft pulley bolt and tighten to 270 Nm (200 lbf.ft).
  4. Remove tool LRT-12-080 from crankshaft pulley.

Gasket - timing gear cover

$% 12.65.04.01

Disassembly

  1. Remove oil pick up strainer. ENGINE - V8, OVERHAUL, Strainer - oil pick-up.
Disassembly – Remove oil pick up strainer.  ENGINE - V8, OVERHAUL, Strainer - oil pick-up.

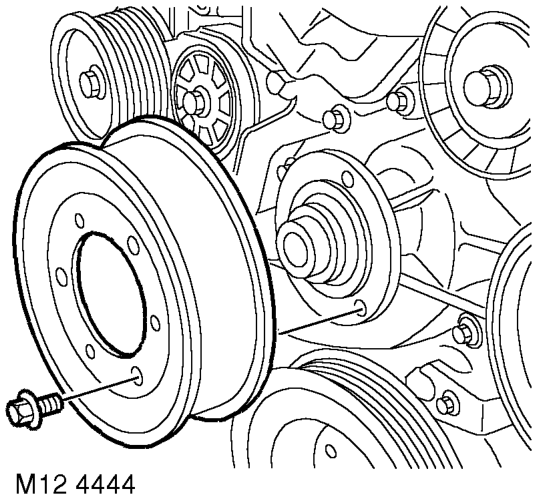

  1. Remove and discard 3 bolts securing coolant pump pulley.
  2. Remove coolant pump pulley.
Disassembly – Remove coolant pump pulley.

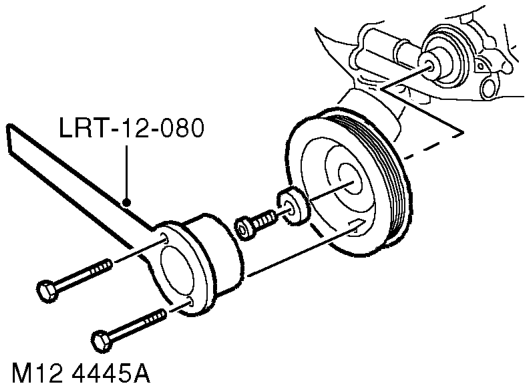

  1. Secure tool LRT-12-080 to crankshaft pulley with 2 bolts.
  2. Remove crankshaft pulley bolt.
  3. Remove crankshaft pulley.
