Engine - V8Disassembly
  1. Clean hub and mating face, spacer and clamp ring. Seal - crankshaft - rear - manual models
  2. Clean drive plate and ensure free from cracks and distortion.

$% 12.21.20.01

  1. Fit spacer and hub to crankshaft, tighten Allen screws to 78 Nm (58 lbf.ft).

Disassembly

  1. Fit drive plate and clamp ring, tighten bolts to 45 Nm (35 lbf.ft).
  2. Fit CKP sensor. ENGINE MANAGEMENT SYSTEM - V8, REPAIRS, Sensor - crankshaft position (CKP).

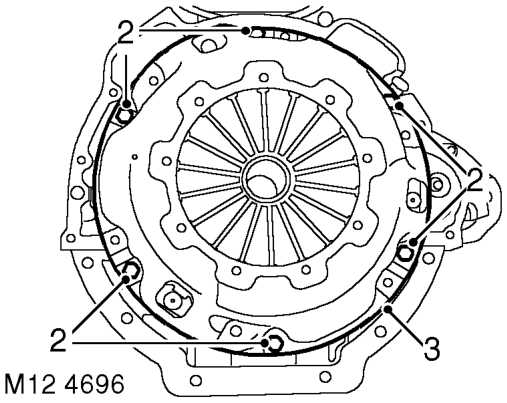

Disassembly – Fit CKP sensor.  ENGINE MANAGEMENT SYSTEM - V8, REPAIRS, Sensor - crankshaft position (CK
  1. Restrain flywheel.
  2. Working in sequence, loosen and remove 6 bolts securing clutch cover to flywheel.
  3. Remove clutch cover.
  4. Remove clutch plate.
  5. Remove CKP sensor. ENGINE MANAGEMENT SYSTEM - V8, REPAIRS, Sensor - crankshaft position (CKP).

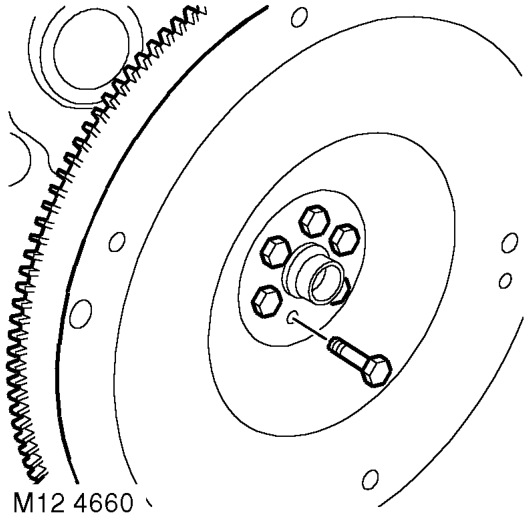

Disassembly – Remove CKP sensor.  ENGINE MANAGEMENT SYSTEM - V8, REPAIRS, Sensor - crankshaft position
  1. Remove 6 bolts securing flywheel.
  2. Remove flywheel.
