Reassembly

34. Check that cutter blades are adjusted so that

35. Clean valve seat and valve.

Reassembly

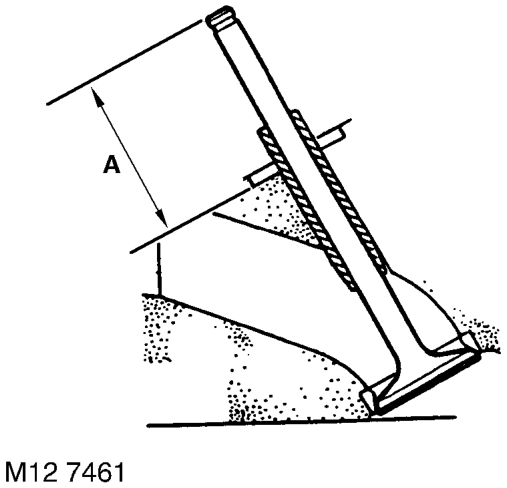

31. Check valve installed height if valve seats have been refaced or renewed. l Valve installed height, end of valve to base of spring seat, 'A' = 44.16 to 45.29 mm (1.74 to 1.80 in).

32. Reface valves as necessary. If a valve has to be ground to a knife-edge to obtain a true seat, renew valve.

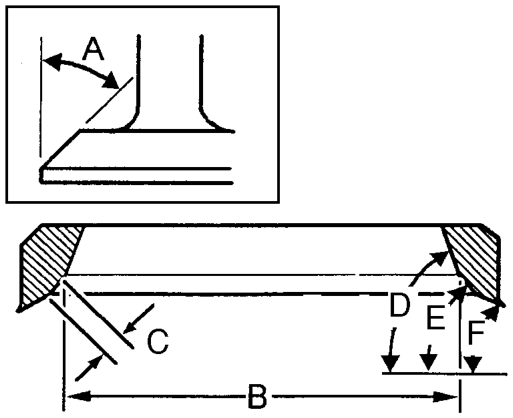

33. Cut valve seats using suitable cutters: l Valve seat angle 'A' = 45°. l Valve seat insert diameter 'B' Inlet = 36.83 mm (1.45 in). l Valve seat insert diameter 'B' Exhaust = 31.50 mm (1.24 in). l Seating width 'C' - Inlet = 0.89 to 1.4 mm (0.035 to 0.055 in). l Seating width 'C' - Exhaust = 1.32 to 1.83 mm (0.052 to 0.072 in). l Angle 'D' = 70° . l Angle 'E' = 46° to 46° 25'. l Angle 'F' = 20° .

middle of blade contacts area of material to be cut. Use light pressure and only remove the minimum of material necessary.

1. Clean spring caps, collets and valve springs.
2. Lubricate new valve stem oil seal with clean engine oil and fit seal.
3. Lubricate valve with clean engine oil and fit valve.

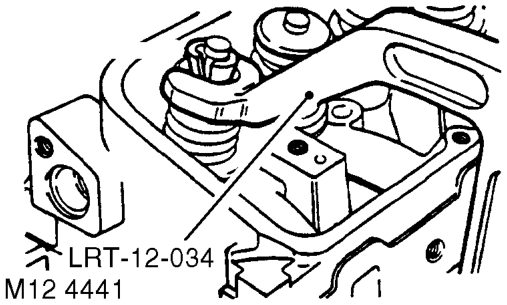

4. Fit spring and cap, compress spring using tool LRT-12-034 and fit collets.
5. Release valve spring and remove tool LRT-12- 034.
6. Fit cylinder head gasket. ENGINE - V8, OVERHAUL, Gasket - cylinder head.
