Engine - V8Gasket - inlet manifold · page 1 of 2

OVERHAUL

Gasket - inlet manifold

$% 30.15.08.01

Disassembly

Disassembly – $% 30.15.08.01

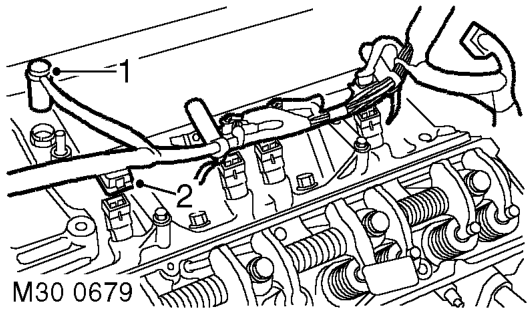

  1. Disconnect multiplug from coolant thermistor.
  2. Disconnect multiplugs from injectors; release injector harness from fuel rail and position aside.
Disassembly – Disconnect multiplugs from injectors; release injector harness from fuel rail and position

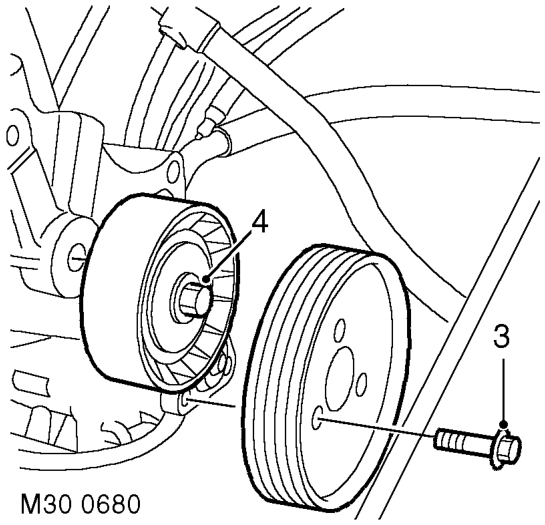

  1. Remove 3 bolts securing PAS pump pulley and remove pulley.
  2. Loosen bolt securing jockey pulley and remove pulley.
Disassembly – Loosen bolt securing jockey pulley and remove pulley.

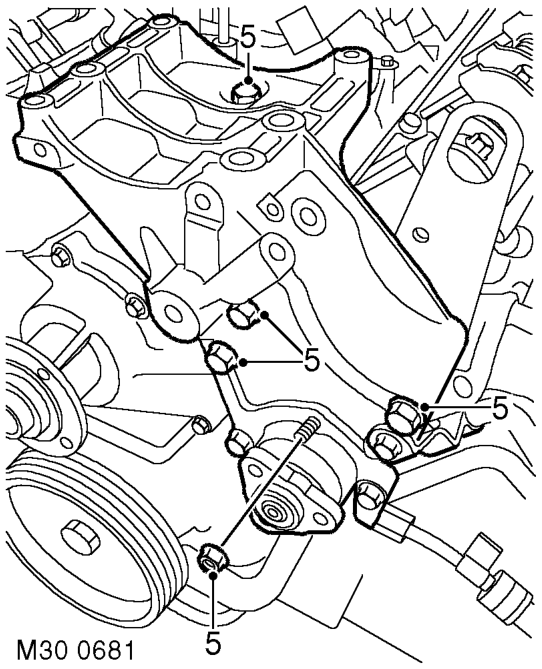

  1. Remove 4 bolts and one nut securing auxiliary housing and remove housing.
  2. Remove 2 nuts securing alternator cables and release the cables.
Disassembly – Remove 2 nuts securing alternator cables and release the cables.

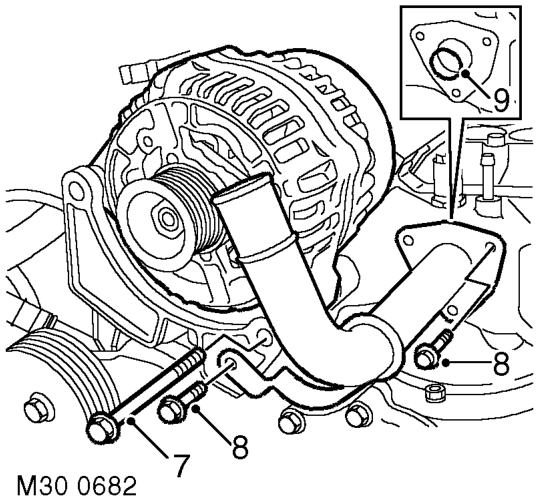

  1. Remove two bolts securing alternator and remove alternator.
  2. Remove 4 bolts securing coolant outlet elbow and remove outlet elbow.
  3. Remove and discard 'O' ring.
  4. Release ht leads from rocker covers.
