Gasket - inlet manifold (page 2 of 2)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Overhaul
Engine - V8Gasket - inlet manifold · page 2 of 2

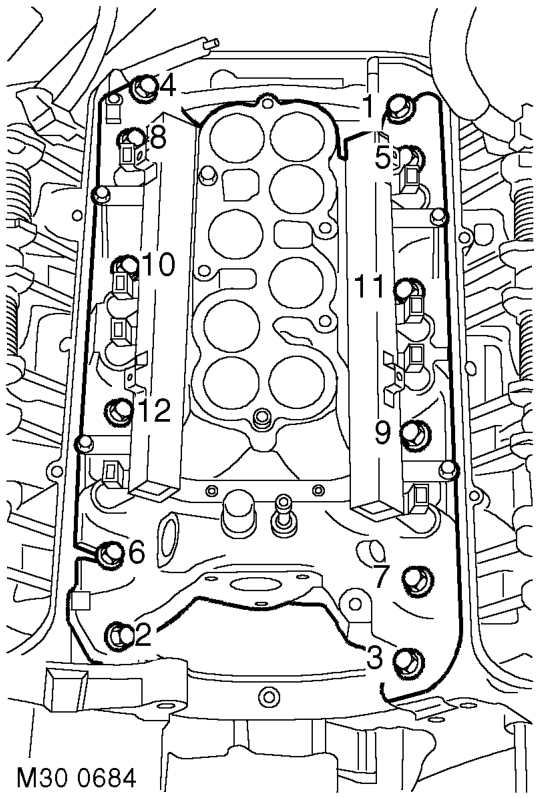

- Using the sequence shown, remove 12 bolts
- Remove inlet manifold assembly.

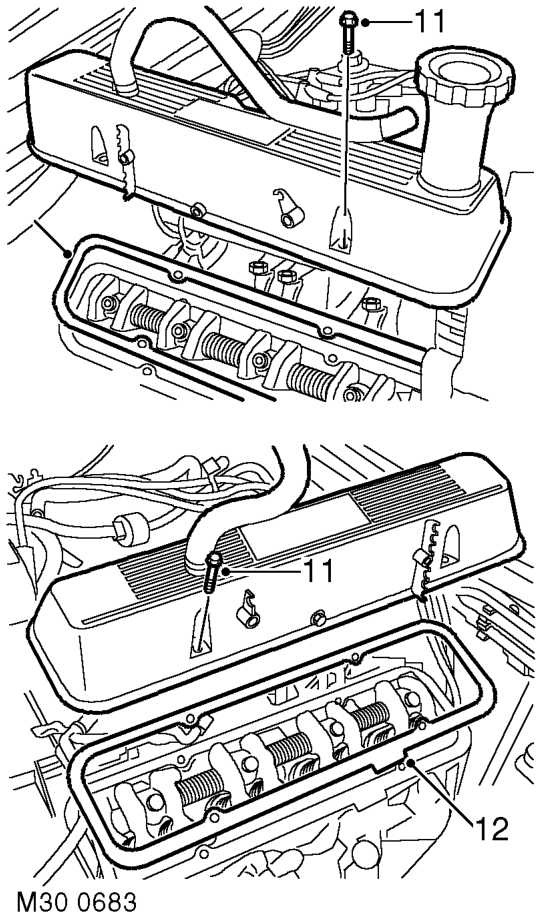

- Remove 4 bolts securing rocker cover and remove cover.
- Remove and discard rocker cover gaskets.
securing the inlet manifold.
