ACE system component layout (Front suspension)

_{DESCRIPTION AND OPERATION}

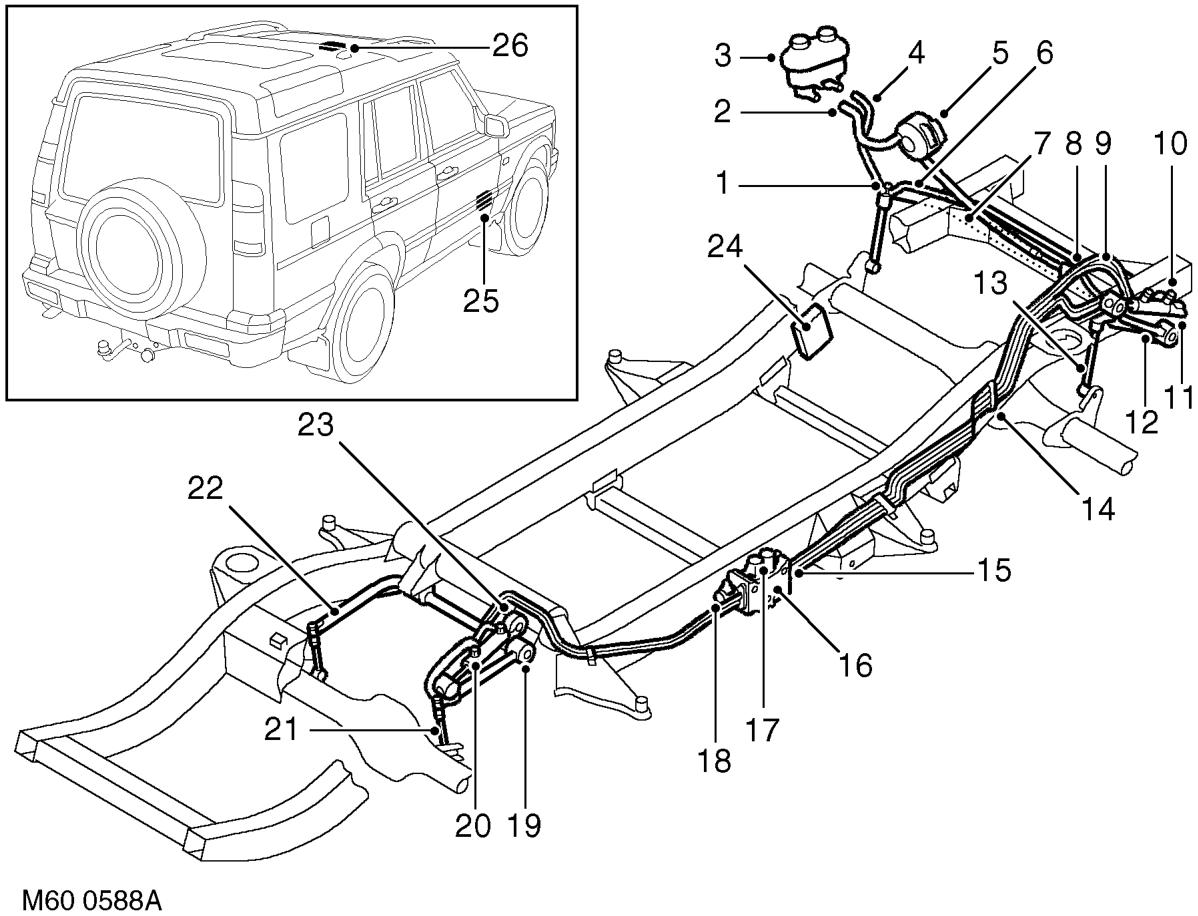

ACE system component layout

1 Anti-roll bar link 2 Suction hose 3 ACE/PAS reservoir 4 Return pipe 5 ACE pump 6 Pressure pipe 7 Torsion bar - front 8 Actuator hose 9 Actuator hose 10 Actuator 11 Short arm 12 Long arm 13 Anti-roll bar link

14 Isolator and bracket (2 and 4 way) 7 off 15 Pressure transducer 16 Valve block 17 Directional control valve 2 off 18 Pressure control valve 19 Long arm 20 Actuator 21 Anti-roll bar link 22 Torsion bar - rear 23 Short arm 24 ACE ECU 25 Accelerometer - lower 26 Accelerometer - upper
