Front suspensionDescription - ACE
Description - ACE
General
The Active Cornering Enhancement (ACE) system is used to control vehicle roll angles. The following illustrations show the difference in body roll angle between a conventional 'passive' anti-roll bar and the ACE system.

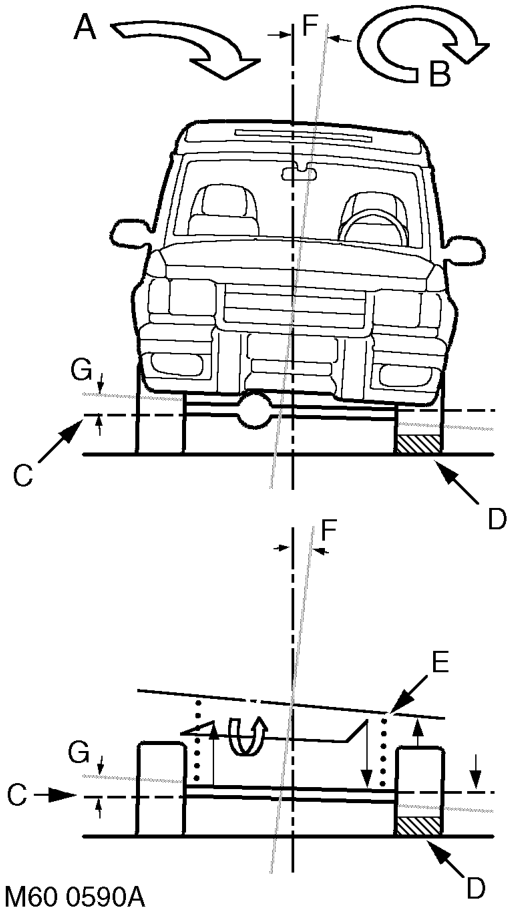

Conventional 'passive' anti-roll bar
a Direction of travel - Right hand bend b Body roll c Axle roll d Tyre squash e Coil springs f Body roll angle g Axle roll angle
