Front suspension (Torsion bar): Description and operation

Torsion bar

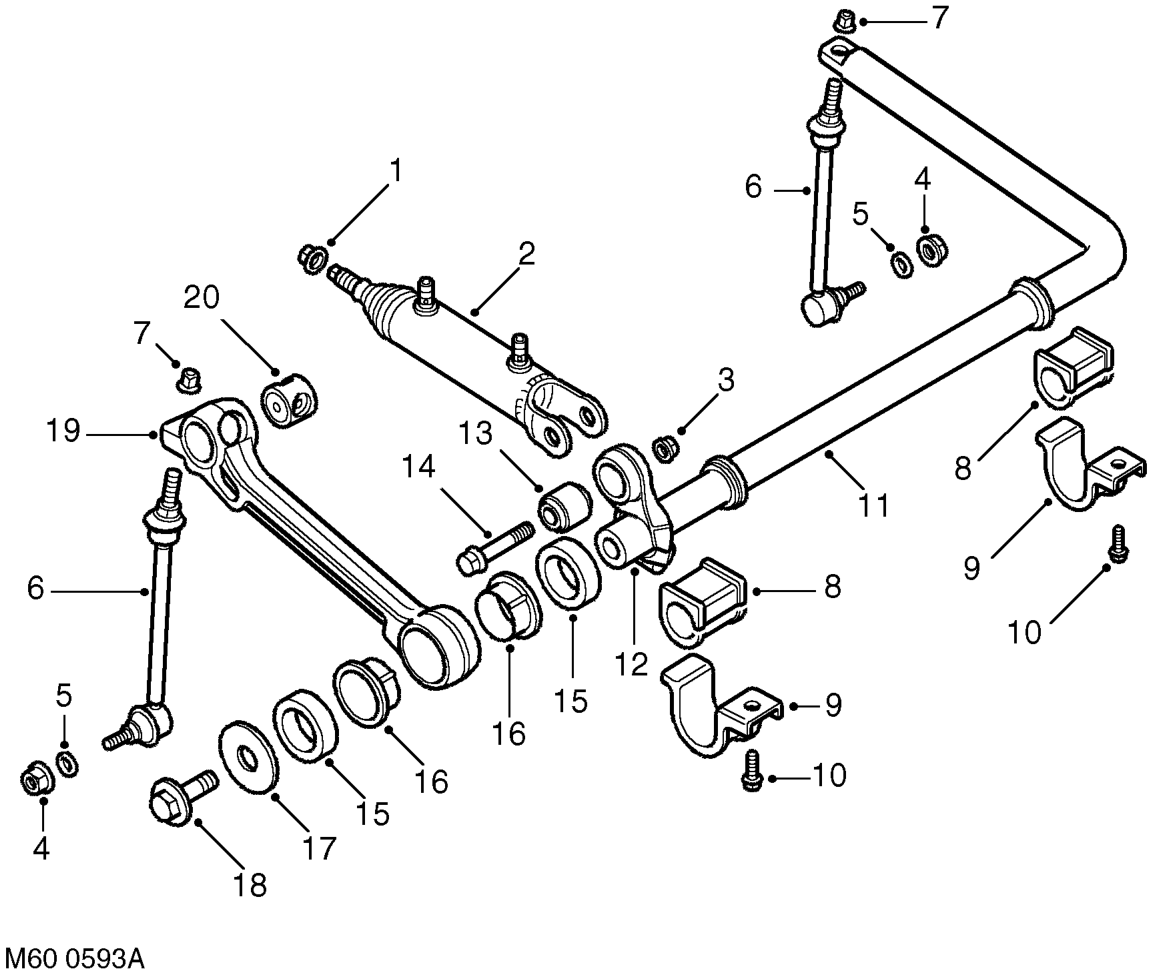

Front torsion bar shown, rear torsion bar similar

1 Locknut 2 Actuator 3 Locknut 4 Locknut 2 off 5 Washer 6 Anti-roll bar link 7 Locknut 8 Bush 9 Clamp plate 10 Bolt 2 off

11 Torsion bar 12 Short arm 13 Bush 14 Bolt 15 Outer slipper bush 2 off 16 Inner slipper bush 2 off 17 Washer 18 Bolt 19 Long arm 20 Bush

The front and rear torsion bar assemblies are similar in their construction, the rear torsion bar being narrower than the front. Each torsion bar is made from 35 mm (1.38 in.) diameter spring steel bar.
