Front suspension (Valve block): Description and operation
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Valve block
Front suspensionValve block

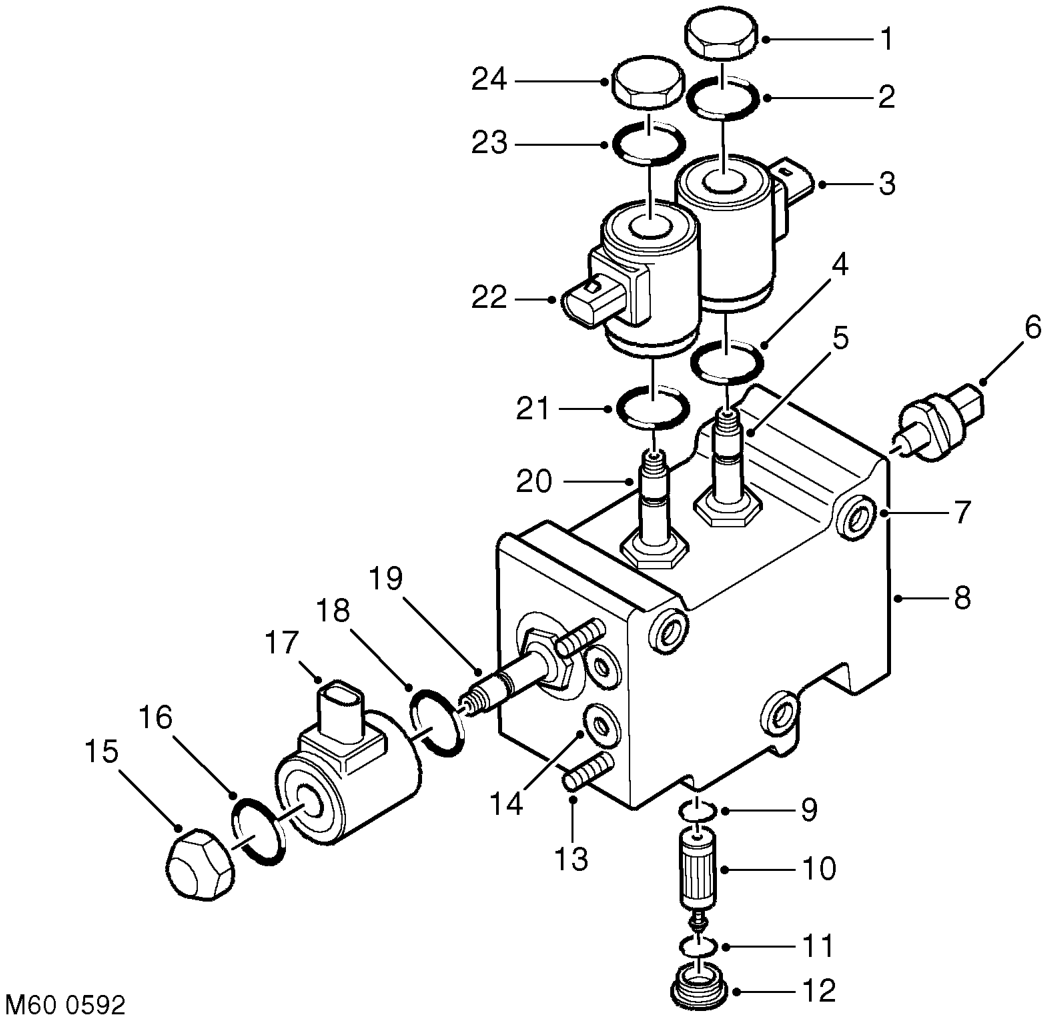

Valve block
1 Cap 2 'O' ring 3 Coil 4 'O' ring 5 Directional control valve 1 (extend) 6 Pressure transducer 7 Mounting bush 3 off 8 Valve block 9 'O' ring 10 High pressure filter 11 'O' ring 12 Cap
13 Stud 4 off 14 Pipe connections 15 Cap 16 'O' ring 17 Coil 18 'O' ring 19 Pressure control valve 20 Directional control valve 2 (retract) 21 'O' ring 22 Coil 23 'O' ring 24 Cap
