Repair

Repair

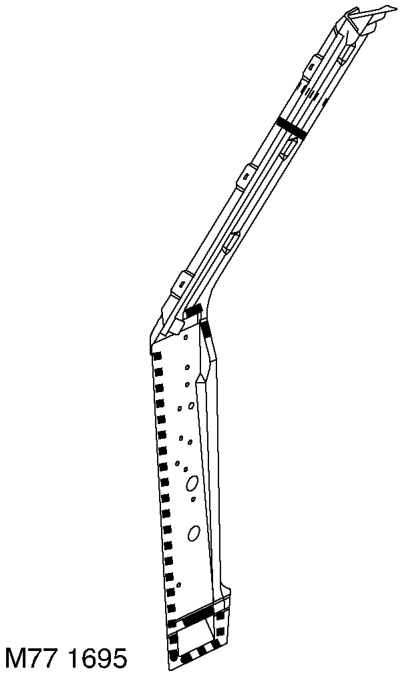

1. Remove existing panel(s), prepare panel joint faces and install new panel(s) in accordance with Panel Replacement Procedure. Punch or drill holes in new panel for plug welding as shown.

Refit

1. Fit insulation pad to engine bulkhead.
2. Fit front door aperture seal.
3. Position front carpet and fit tread plate to front door aperture.
4. Fit wiring to 'A' post.
5. Driver's side: Fit steering column support bracket.
6. Fit fascia. INTERIOR TRIM COMPONENTS, REPAIRS, Fascia.
7. RH side: Fit CD autochanger. IN CAR ENTERTAINMENT, REPAIRS, CD autochanger.
8. Fit RH or LH front seat. SEATS, REPAIRS, Seat - front.
9. Fit sunroof drain tube.
10. Connect multiplug to speaker (if fitted) and fit finisher to 'A' post.
11. Diesel models: Fit ECM. ENGINE MANAGEMENT SYSTEM - Td5, REPAIRS, Engine control module (ECM).
12. Fit windscreen. SCREENS, REPAIRS, Windscreen.
13. Fit sill finisher.
14. Fit front door. DOORS, REPAIRS, Door - front.
15. Fit front wing. EXTERIOR FITTINGS, REPAIRS, Wing - front - up to 03MY.
16. Fit bonnet.
17. Connect leads/multiplug to alternator.
18. Connect battery leads, negative lead last.
