Airbag module - drivers - deployment (page 2 of 2)

5. Ensure airbag module mounting brackets are secure.

10. DO NOT return to airbag module for 30
11. Using gloves and face mask, remove airbag
12. Wipe down tool with damp cloth.
13. Transport deployed airbag module to

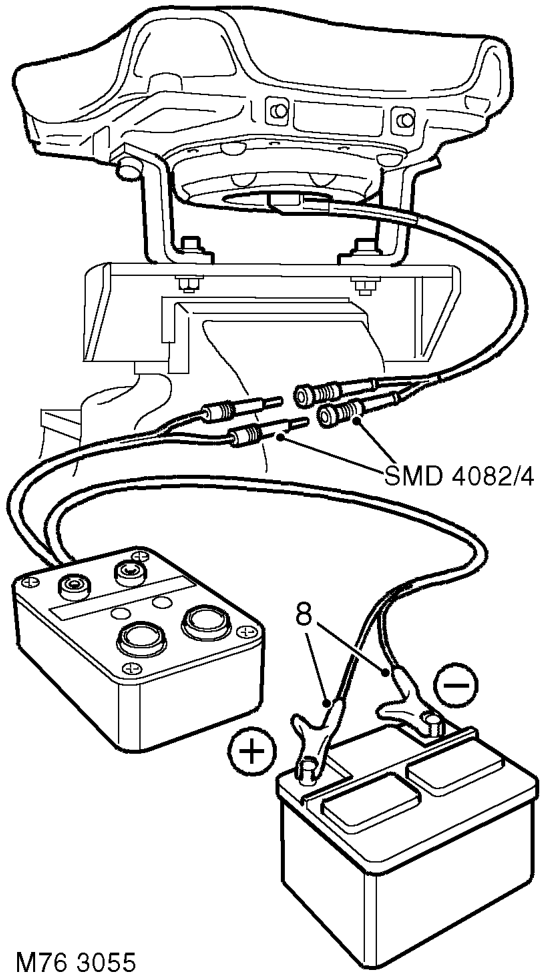

6. Connect flylead SMD 4082/4 to airbag module.

WARNING: Ensure the deployment tool is not connected to the battery.

7. Connect flylead SMD 4082/4 to tool SMD 4082/ 1.

WARNING: Do not lean over module whilst connecting.

8. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are at least 15 metres (50 ft) away from the airbag module.

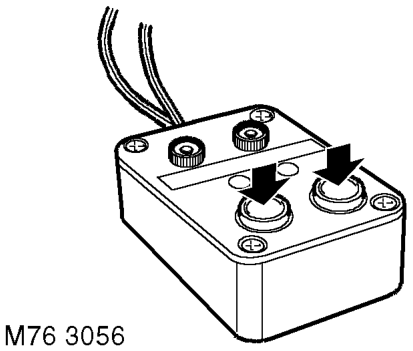

9. Press both operating buttons to deploy airbag module.

minutes.

module from tool, place airbag module in plastic bag and seal bag.

designated area for incineration. NOTE: DO NOT re-use or salvage any parts of the airbag system including steering wheel or steering column. Do not transport deployed SRS components in the vehicle passenger compartment.
