Camshaft rear oil seal (page 4 of 5)
- Make
- Rover
- Model
- 400 Workshop Manual
- Year
- 1995–2000
- Section
- Repairs
Engine - L SeriesCamshaft rear oil seal · page 4 of 5

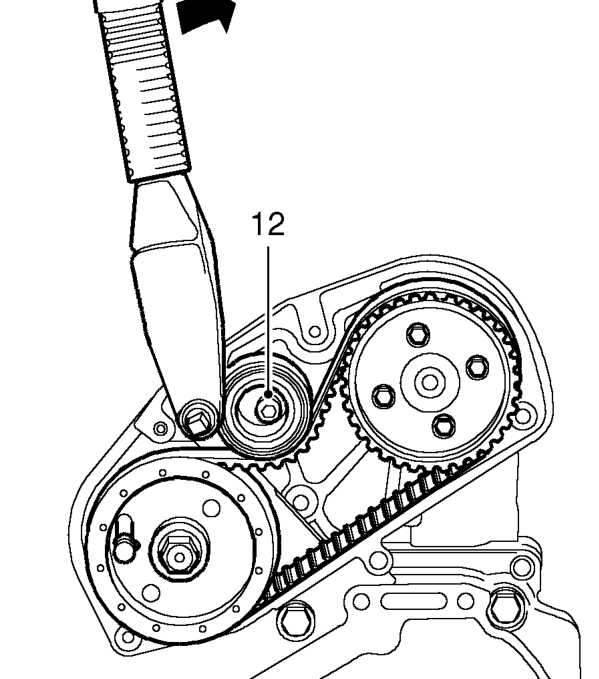

- Using a torque wrench fitted to tensioner pulley backplate, apply a clockwise, as viewed from rear of engine, torque loading of 6 Nm to drive belt. Maintain loading and tighten tensioner pulley Allen bolt to 44 Nm.
CAUTION: Do not exceed specified torque figure.

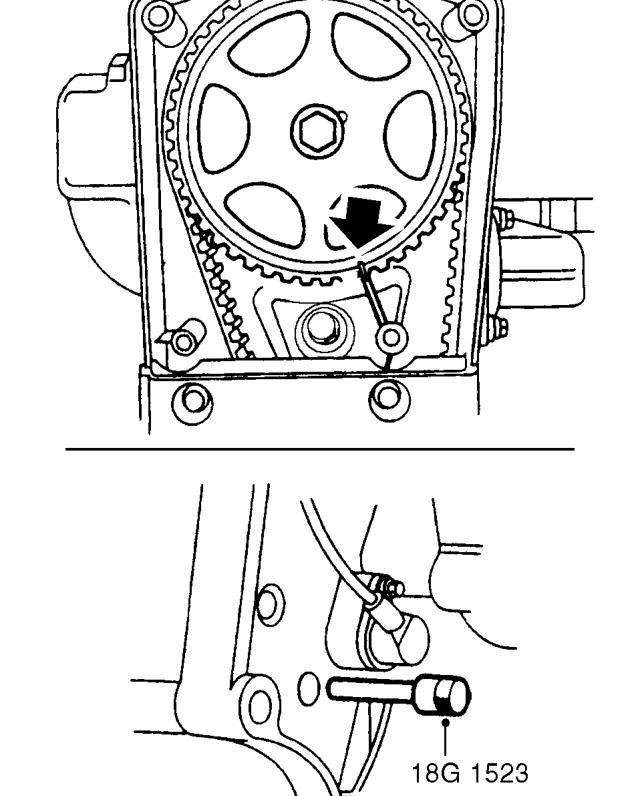

- Remove FIP gear locking pin 18G 1717 and timing pin 18G 1523.
- Rotate crankshaft clockwise 2 complete revolutions and fit timing pin 18G 1523.
CAUTION: Ensure pin is fully inserted into hole in flywheel.
- Check that camshaft drive gear timing mark is aligned with mark on rear cover.
