Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

section. (page 2 of 3)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - L Seriessection. · page 2 of 3
Diagram

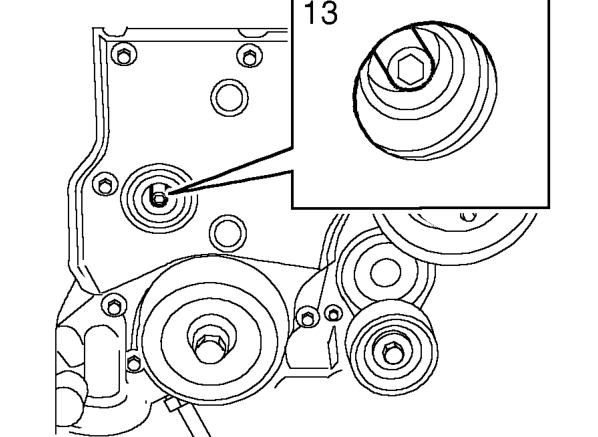

  1. Loosen Allen bolt securing belt tensioner pulley, to allow tensioner to react, then tighten to 55 Nm. Fit Allen bolt access plug.
  2. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

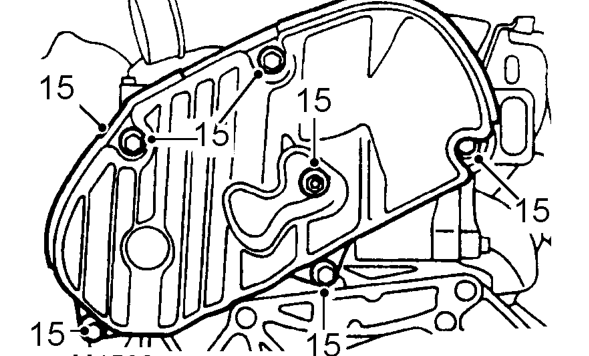

  1. Remove 6 bolts securing fuel injection pump timing belt cover. Remove cover.
Remove 6 bolts securing fuel injection pump timing belt cover. Remove cover.

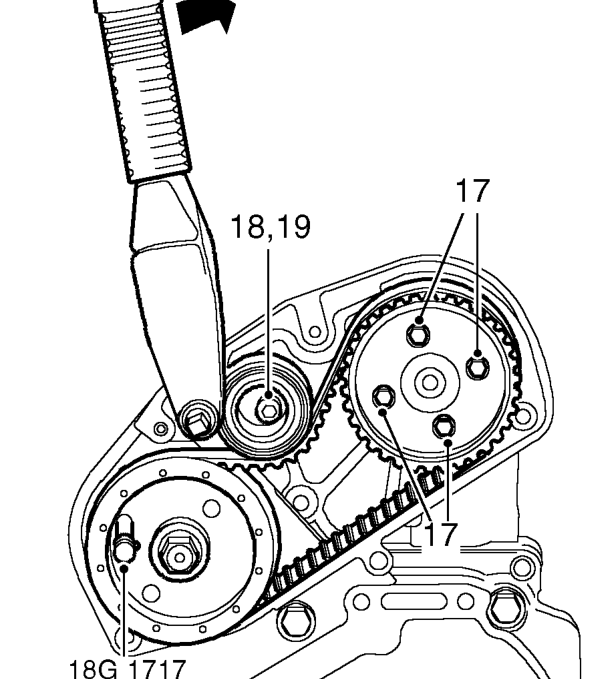

  1. Insert locking pin 18G 1717 through injection pump drive gear and into hole in adapter plate. Locking pin must be a sliding fit. If pin is a tight fit, proceed as follows:
  2. Loosen 4 bolts securing camshaft gear to hub.
  3. Loosen timing belt tensioner Allen bolt.
  4. Using a torque wrench fitted to tensioner pulley backplate, apply a clockwise, as viewed from rear of engine, torque loading of 6 Nm to drive belt. Maintain loading and tighten tensioner pulley Allen bolt to 44 Nm.

CAUTION: Do not exceed specified torque figure.
