Inlet and exhaust manifold gasket - ’l’ series (page 2 of 3)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Manifold & exhaust systemsInlet and exhaust manifold gasket - ’l’ series · page 2 of 3

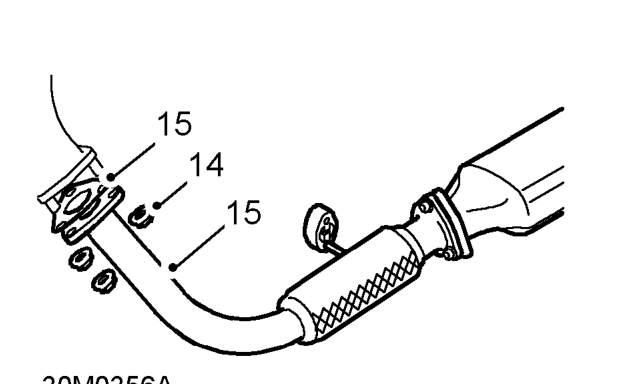

14. Remove 3 nuts securing exhaust front pipe to exhaust manifold.
15. Release exhaust front pipe from exhaust manifold, remove and discard manifold flange gasket.
16. Remove 2 bolts securing oil drain pipe flange to turbocharger.
17. Remove and discard gasket.
18. Remove 2 bolts securing exhaust manifold to mounting bracket.

19. Loosen the 6 bolts and 6 nuts securing inlet manifold and the exhaust manifold to cylinder head.

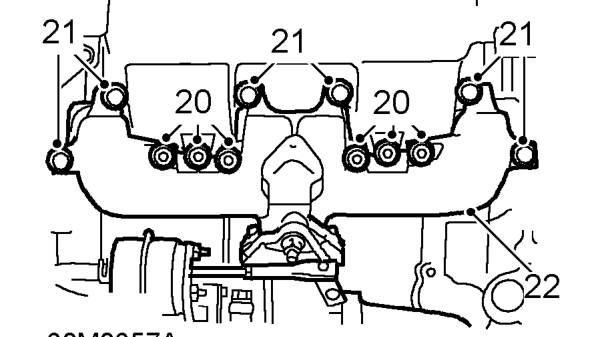

20. Remove 6 nuts securing exhaust manifold to cylinder head.
21. Remove 6 bolts securing exhaust manifold to cylinder head, collect 4 washers.
22. Release and remove manifolds and turbocharger assembly.

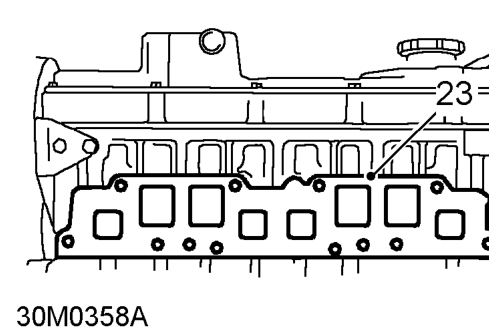

23. Remove and discard manifold gasket.

16 Engine
