Rover 400 Workshop Manual (1995-2000)23 · Suspension
23 · Steering & suspension

Front spring (page 3 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionFront spring · page 3 of 5
Diagram

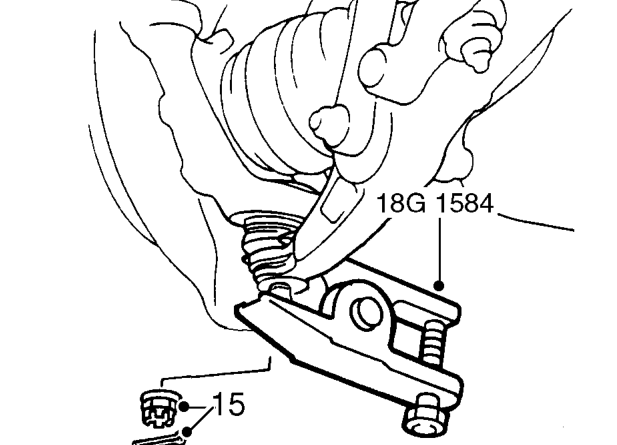

  1. Remove split pin from swivel hub lower ball joint nut and remove nut. Discard split pin.
  2. Break taper joint using tool 18G 1584 .
Break taper joint using tool 18G 1584 .

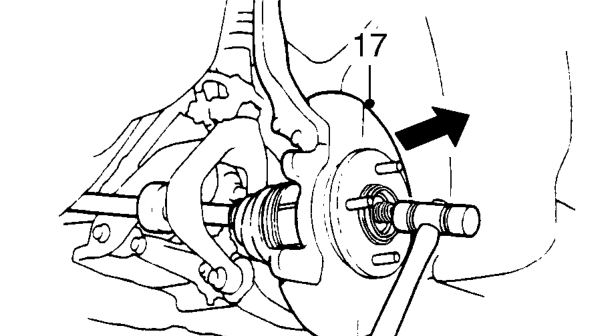

  1. Release and remove swivel hub.

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

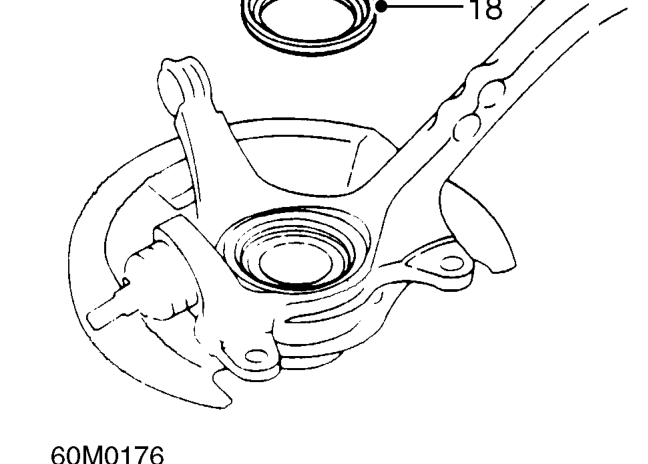

  1. Remove hub ring.
Remove hub ring.

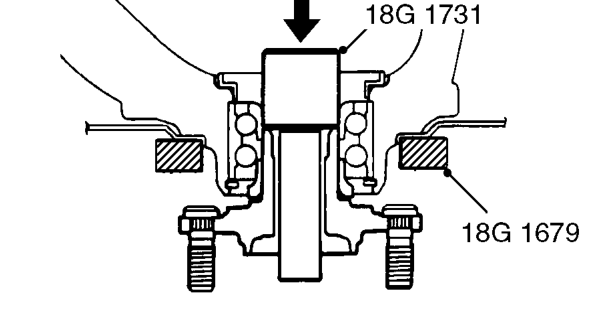

  1. Position swivel hub assembly to press, support on tool 18G 1679 and press out drive flange using tool 18G 1731 .

NOTE: Outer bearing inner track will remain on drive flange.

  1. Remove swivel hub from press.
