Rover 400 Workshop Manual (1995-2000)23 · Suspension
23 · Steering & suspension

Front spring (page 4 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionFront spring · page 4 of 5
Diagram
  1. Position drive flange in a vice.
  2. Clamp both halves of bearing separator around bearing inner track ensuring that inner lip fits below bearing track.

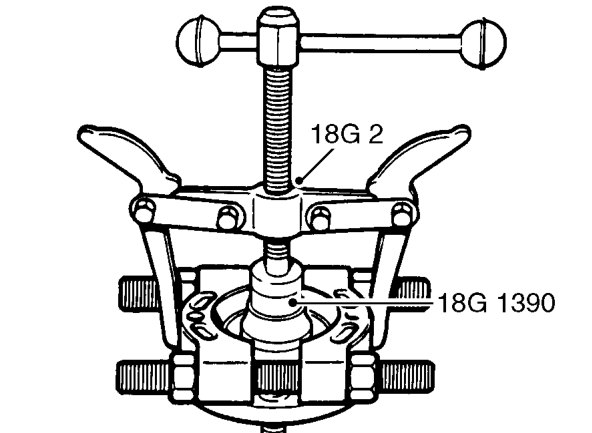

  3. Using tool 18G 2 and thrust pad 18G 1390 withdraw inner track from drive flange.
Using tool 18G 2 and thrust pad 18G 1390 withdraw inner track from drive flange.

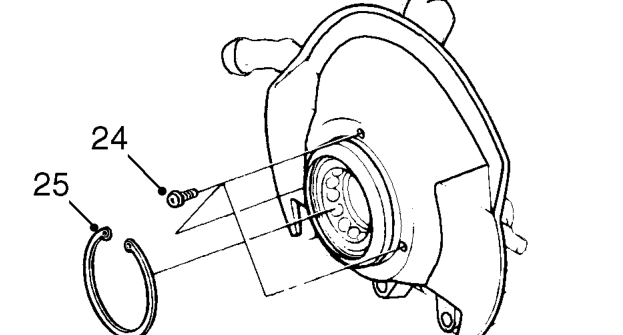

  1. Remove 3 screws securing disc shield and remove disc shield.
  2. Remove bearing circlip.
Remove bearing circlip.

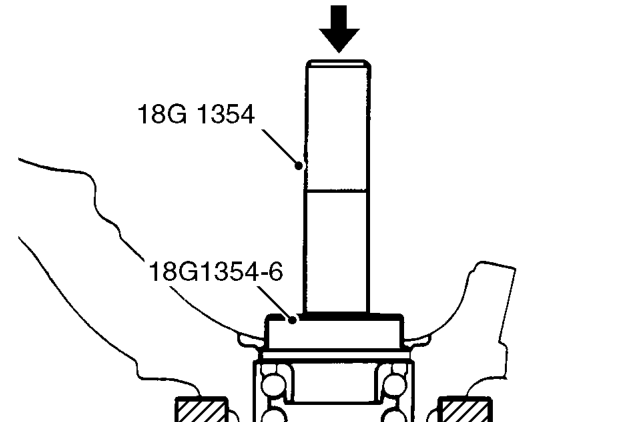

  1. Position swivel hub to press, support on tool 18G 1679 and press out bearing using tool 18G1354 with adaptor 18G 1354-6 . Discard bearing.

CAUTION: Never re-use existing bearing.

  1. Remove swivel hub from press.
  2. Remove tool 18G 1679 .
