18 · Electrical

Combination light switch

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Wire harness and earth locations › Combination light switch
ElectricalCombination light switch

KF.KG:

Combination light switch circuit diagram with relays and fuses.

DIMMER RELAY (From page 23–37)

  • BLU/RED
  • BLU/RED
  • YEL
  • RED/BLU

HEADLIGHT RELAY (From page 23–37)

  • RED/BLU
  • BLU

No.19 (30A) FUSE (From page 23–37)

  • RED/GRN
  • RED/GRN

No.27 (10A) FUSE (From page 23–37)

  • BLU/RED
  • RED

Rear fog light

Headlight washer control unit

Under-dash fuse/relay box with internal connections.

UNDER–DASH FUSE/RELAY BOX

  • (Internal connection)
  • (Internal connection)

Integrated control unit

(Option C)

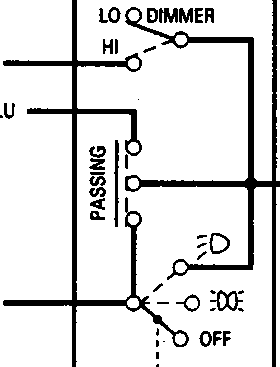

Combination light switch with LO, HI, PASSING, and OFF positions.

COMBINATION LIGHT SWITCH

  • LO DIMMER
  • HI
  • PASSING
  • OFF

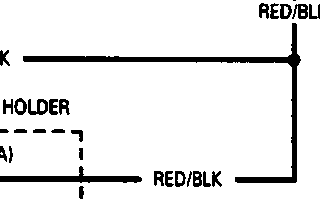

Auxiliary fuse holder with No.13 (10A) fuse.

AUXILIARY FUSE HOLDER

  • No.13 (10A)
Fuse box terminal connections for various lights and controls.
  • RED/BLK
  • RED/BLK
  • RED/BLK
List of components controlled by the right and left front parking lights, dash lights brightness controller, cigarette lighter, A/T gear position console light, master power window switch light, and license plate light.
  • Right } front parking light
  • Left } front parking light
  • Dash lights brightness controller
  • Cigarette lighter
  • A/T gear position console light
  • Master power window switch light
  • Right } license plate light
  • Left } license plate light
List of components controlled by dash lights, clock, glove box light, hazard warning switch light, heater control panel lights, headlight washer/rear window defogger switch light, rear fog light switch light, and stereo radio/cassette player.
  • Dash lights
  • Clock
  • Glove box light
  • Hazard warning switch light
  • Heater control panel lights
  • Headlight washer/rear window defogger switch light
  • Rear fog light switch light
  • Stereo radio/cassette player

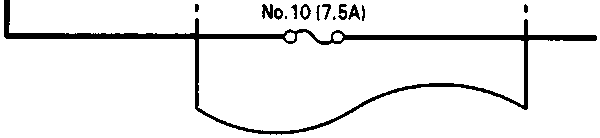

Fuse box terminal connections for taillights.
  • No.10 (7.5A)
  • RED/BLK
  • RED/YEL

Right } taillight

Left } taillight
