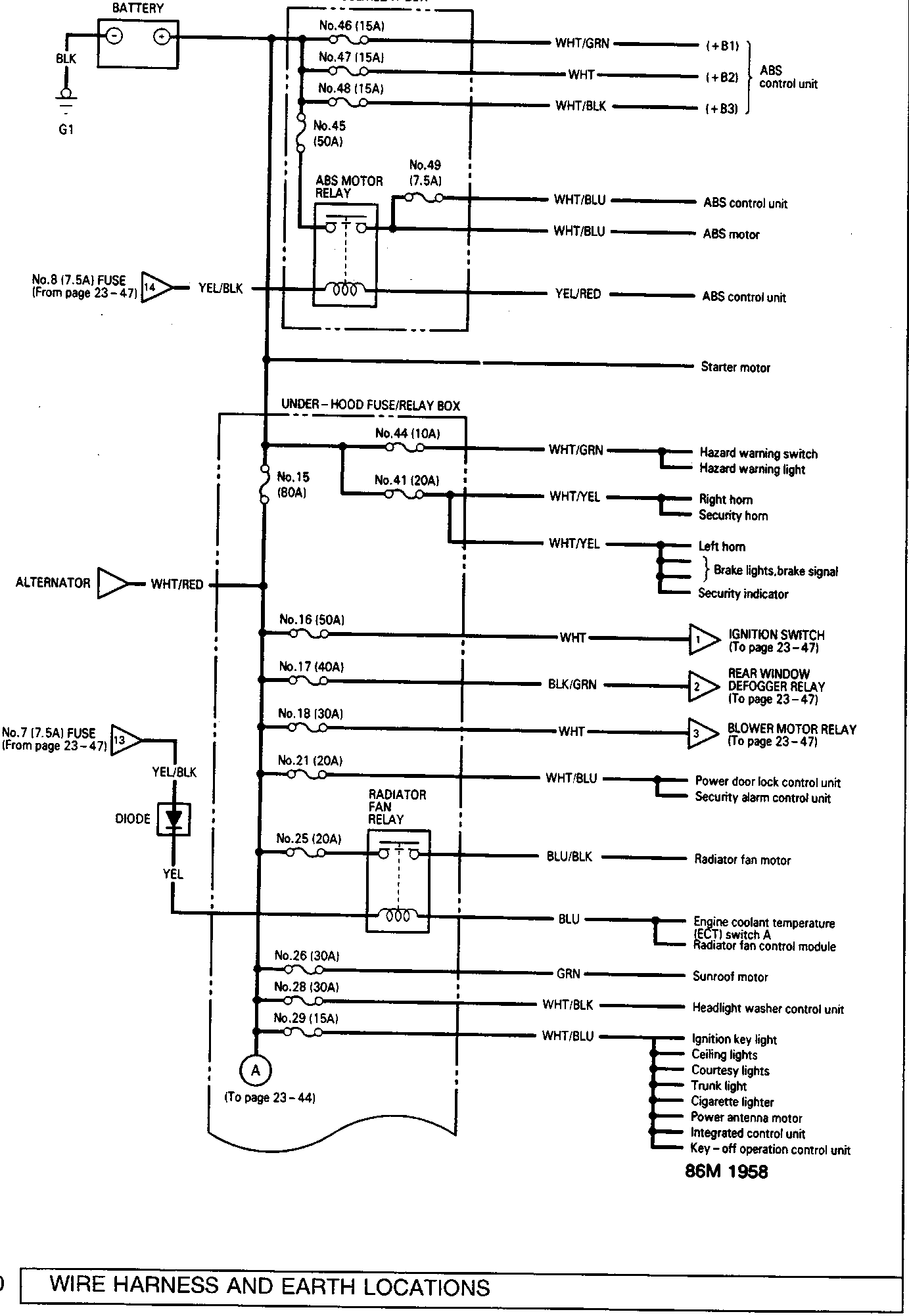

Battery

BATTERY

UNDER-HOOD ABS FUSE/RELAY BOX

No.46 (15A) WHT/GRN (+B1) ABS control unit

No.47 (15A) WHT (+B2) ABS control unit

No.48 (15A) WHT/BLK (+B3) ABS control unit

No.45 (50A)

ABS MOTOR RELAY

No.49 (7.5A) WHT/BLU ABS control unit

WHT/BLU ABS motor

YEL/RED ABS control unit

Starter motor

No.8 (7.5A) FUSE (From page 23-47) YEL/BLK

UNDER-HOOD FUSE/RELAY BOX

No.44 (10A) WHT/GRN Hazard warning switch

Hazard warning light

No.15 (80A) No.41 (20A) WHT/YEL Right horn

Security horn

WHT/YEL Left horn

Brake lights, brake signal

Security indicator

ALTERNATOR WHT/RED

No.16 (50A) WHT IGNITION SWITCH (To page 23-47)

No.17 (40A) BLK/GRN REAR WINDOW DEFOGGER RELAY (To page 23-47)

No.18 (30A) WHT BLOWER MOTOR RELAY (To page 23-47)

No.21 (20A) WHT/BLU Power door lock control unit

Security alarm control unit

RADIATOR FAN RELAY

No.25 (20A) BLU/BLK Radiator fan motor

BLU Engine coolant temperature (ECT) switch A

Radiator fan control module

No.26 (30A) GRN Sunroof motor

No.28 (30A) WHT/BLK Headlight washer control unit

No.29 (15A) WHT/BLU Ignition key light

Ceiling lights

Courtesy lights

Trunk light

Cigarette lighter

Power antenna motor

Integrated control unit

Key-off operation control unit

86M 1958

No.7 (7.5A) FUSE (From page 23-47) YEL/BLK

DIODE YEL

(To page 23-44)

WIRE HARNESS AND EARTH LOCATIONS
