Engine Compartment Fuse/Relay Box

Note: The fuse/relay box is on the right side of the engine compartment.

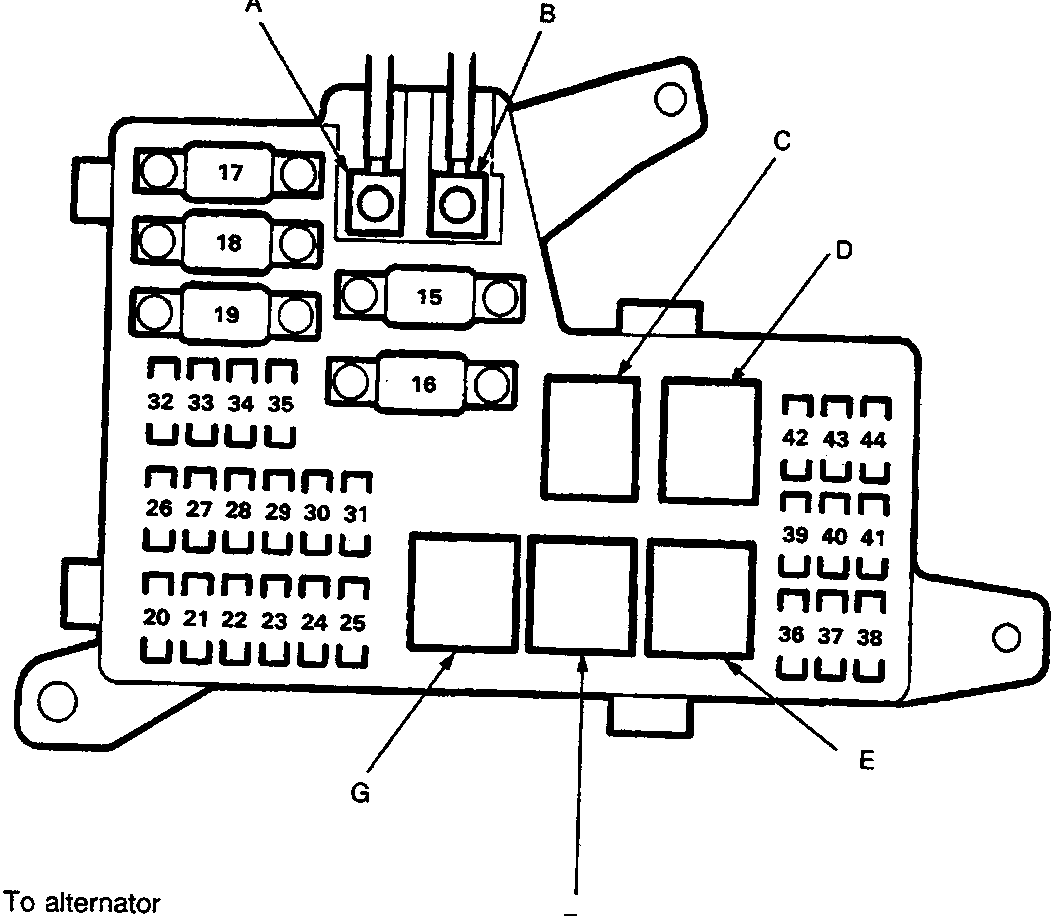

Front View

Diagram of the engine compartment fuse/relay box showing numbered fuse slots and lettered callouts A through G pointing to specific relays and connections.

A To alternator
B To battery
C To dimmer relay
D To headlight relay
E To power window relay
F To radiator fan relay
G To windscreen wiper intermittent relay
