Circuit Identification (LHD)

Circuit Identification (LHD)

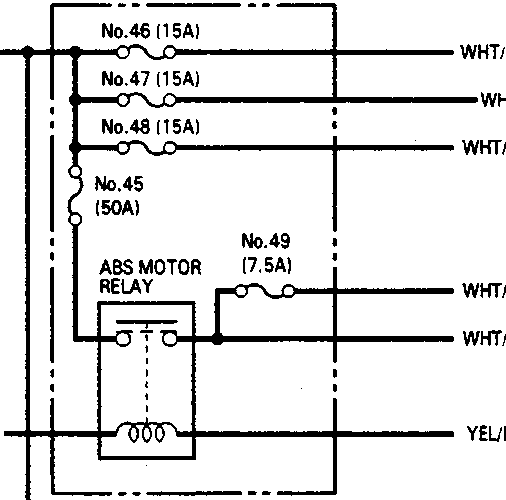

BATTERY BLK G1 No.46 (15A) WHT.GRN (+B1) → ABS control unit No.47 (15A) WHT (+B2) → ABS control unit No.48 (15A) WHT.BLK (+B3) → ABS control unit No.45 (50A) ABS MOTOR RELAY No.49 (7.5A) WHT.BLU → ABS control unit WHT.BLU → ABS motor YEL/RED → ABS control unit No.8 (7.5A) FUSE (From page 23-40) YEL/BLK

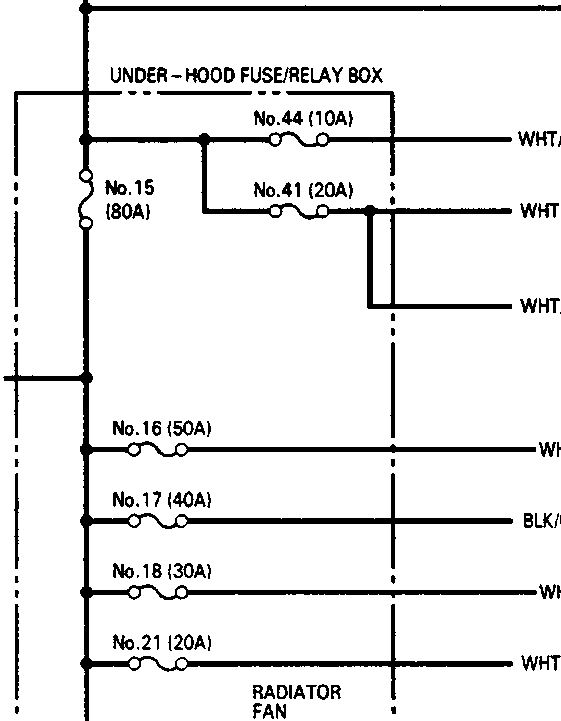

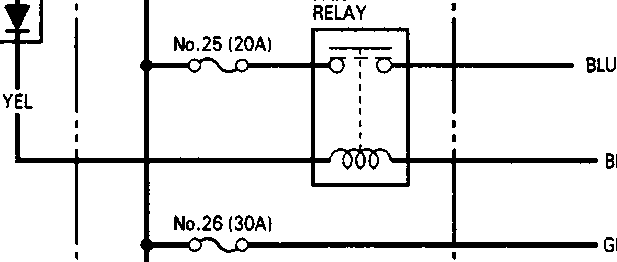

ALTERNATOR WHT/RED No.15 (80A) No.44 (10A) Hazard warning switch → Hazard warning light Right horn → Security horn Left horn → Brake lights, brake signal → Security indicator IGNITION SWITCH (To page 23-40) [1] REAR WINDOW DEFROGGER RELAY (To page 23-40) [2] BLOWER MOTOR RELAY (To page 23-40) [3] No.16 (50A) WHT → Power door lock control unit Security alarm control unit Security siren (Some model versions) RADIATOR FAN RELAY No.25 (20A) BLU/BLK → Radiator fan motor BLU → Engine coolant temperature (ECT) switch A Radiators fan control module GRN → Sunroof motor

DIODE No.7 (7.5A) FUSE (From page 23-40) YEL/BLK No.21 (20A) WHT/BLU → Power door lock control unit Security alarm control unit Security siren (Some model versions)

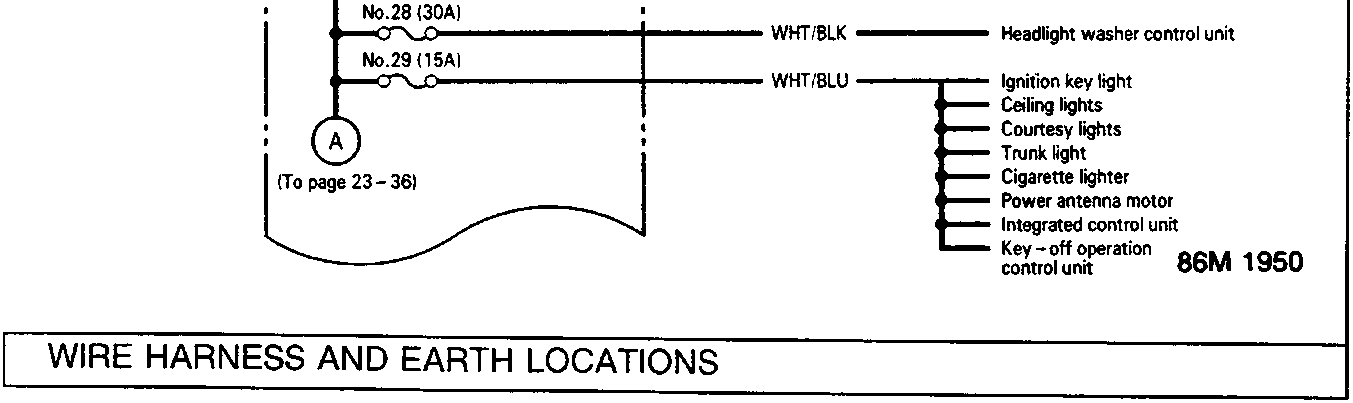

No.28 (30A) WHT/BLK → Headlight washer control unit No.29 (15A) WHT/BLU → Ignition key light Ceiling lights Courtesy lights Trunk light Cigarette lighter Power antenna motor Integrated control unit Key-off operation control unit
