18 · Electrical

Wht/blk

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Wire harness and earth locations › Wht/blk
ElectricalWht/blk

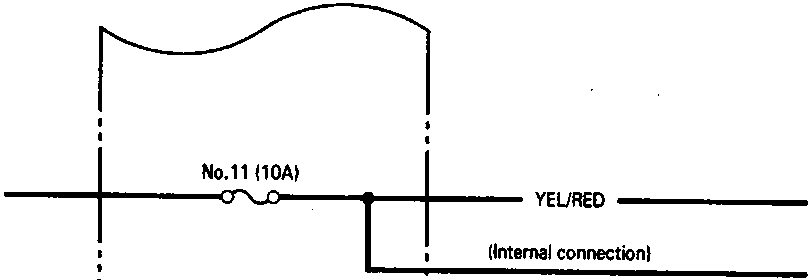

Under-dash fuse/relay box diagram showing connections for stereo radio/cassette player, starter cut relay, and engine control module.

IGNITION SWITCH (ACC) (From page 23-47)

WHT/BLK

No.11 (10A)

YEL/RED

Stereo radio/cassette player

(Internal connection)

(Option A)

IGNITION SWITCH (ST) (From page 23-47)

No.12 (7.5A)

BLK/GRN

BLU/RED

Engine control module (ECM)

PGM - FI main relay

STARTER CUT RELAY

BLK/WHT

Starter solenoid

NEUTRAL POSITION SWITCH (In A/T gear position switch)

BLK/RED

(A/T)

Security alarm control unit

(With security alarm system)

G501

(Without security alarm system)

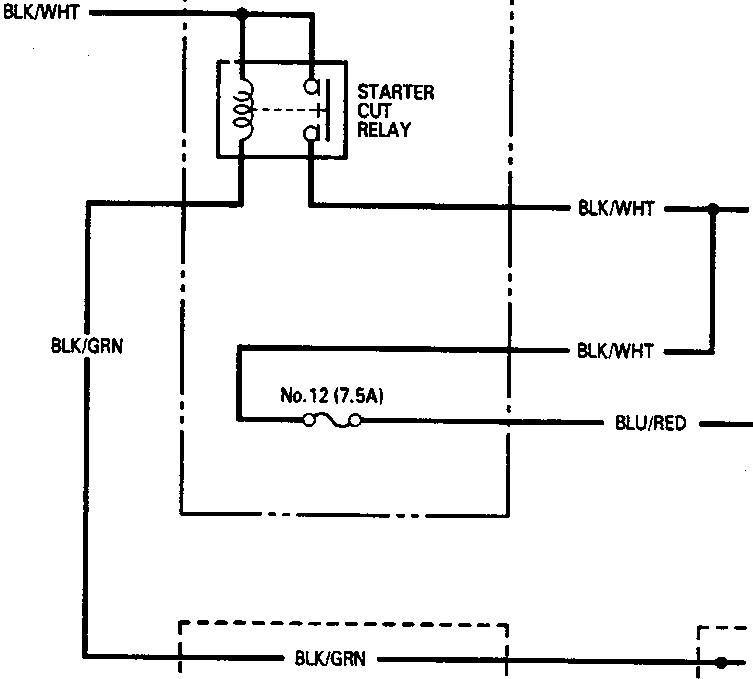

Wiring diagram for starter cut relay and fuse connections
Empty box labeled F3.
